LR25352

3' HIGH OUTPUT NARROW LINEAR FIXTURE - 5CCT & 4 WATTAGE SELECTABLE

LED36/NLINEAR/5CCT/4WO/UNV/D/HO

3&
3&
3&
3&
3&
3&
3&
3&
3&
3D viewer 3&
3&
3&
3&

LR25352

3' HIGH OUTPUT NARROW LINEAR FIXTURE - 5CCT & 4 WATTAGE SELECTABLE

$0.00
/

LED36/NLINEAR/5CCT/4WO/UNV/D/HO

  • CCT 3000K/3500K/4000K/5000K/6500K
  • Lumen 2,000/2,500/3,000/4,000
  • WATT 13/17/21/26
  • Size36"

SPECIFICATIONS

  • Item numberLR25352
  • Item description

    LED36/NLINEAR/5CCT/4WO/UNV/D/HO

  • Size36"
  • Shape LINEAR
  • Dimensions
    • Length 35"
    • Width 1.9"
    • Height 2.4"
  • Finish FROSTED
  • MOL 35"

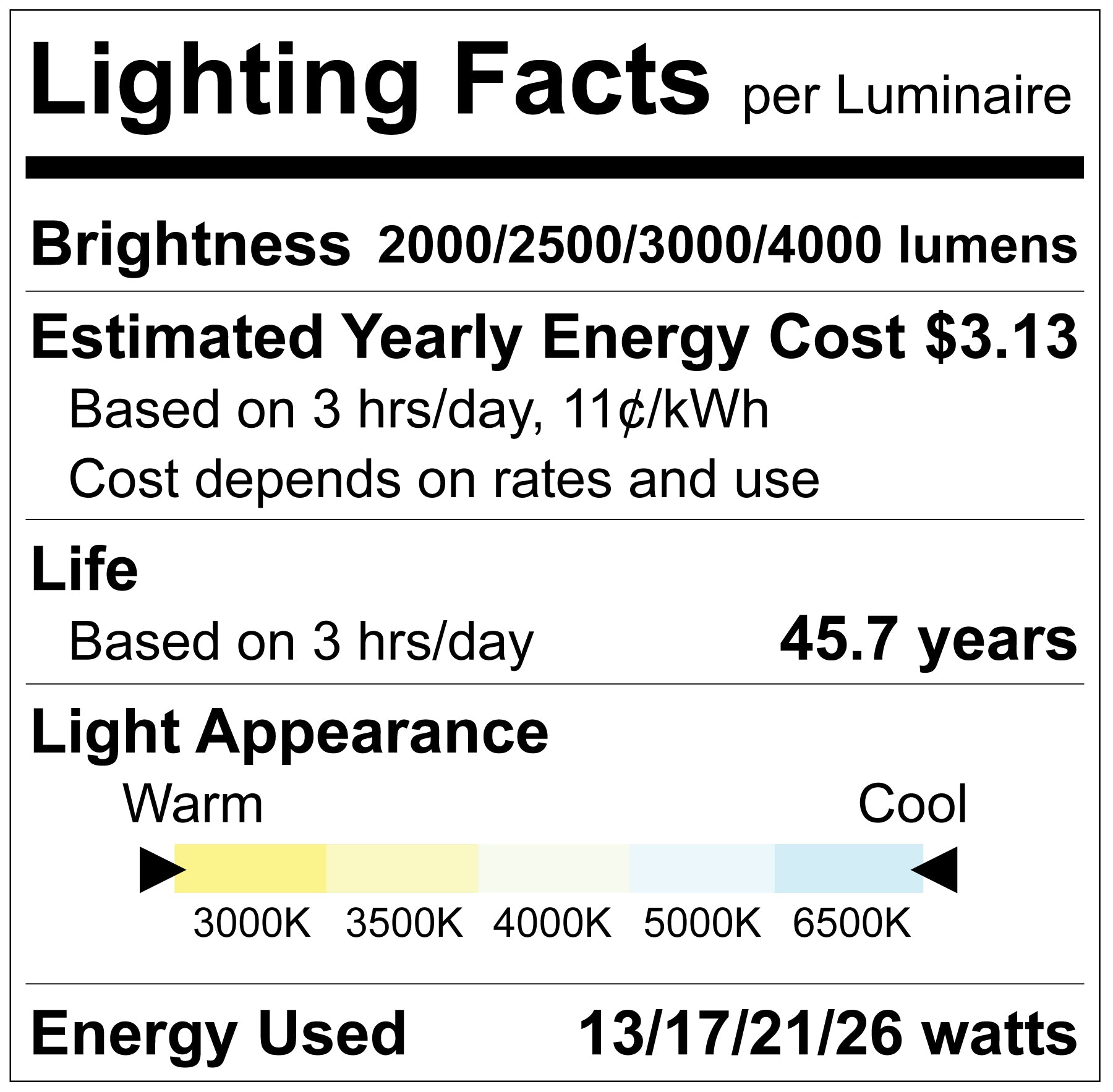

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3000K/3500K/4000K/5000K/6500K
  • Lumen 2,000/2,500/3,000/4,000
  • Beam Angle 110Ā°
  • CRI 80

ELECTRICAL

  • Power (Wattage) 13/17/21/26
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $3.13
  • Dimmable 0-10V
  • Frequency 50/60Hz
  • Lumen Efficacy 150
  • Operating Temp:
    • Min -4Ā°
    • Max 122Ā°

PACKAGING

  • UPC Barcode 608870479423
  • Master BarCode 10608870479420
  • Master Carton Dimensions:
    • Length 36.22"
    • Width 7.08"
    • Height 8.66"
  • Case Size 9

FEATURES

    80 LIFE HR 50000
