LR25360+EM

2' VERY HIGH OUTPUT LINEAR FIXTURE - 5CCT & 4 WATTAGE SELECTABLE + EM

LED24/LINEAR/5CCT/4WO/UNV/D/VHO+EM

2&
2&
2&
2&
2&
2&
2&
2&
2&

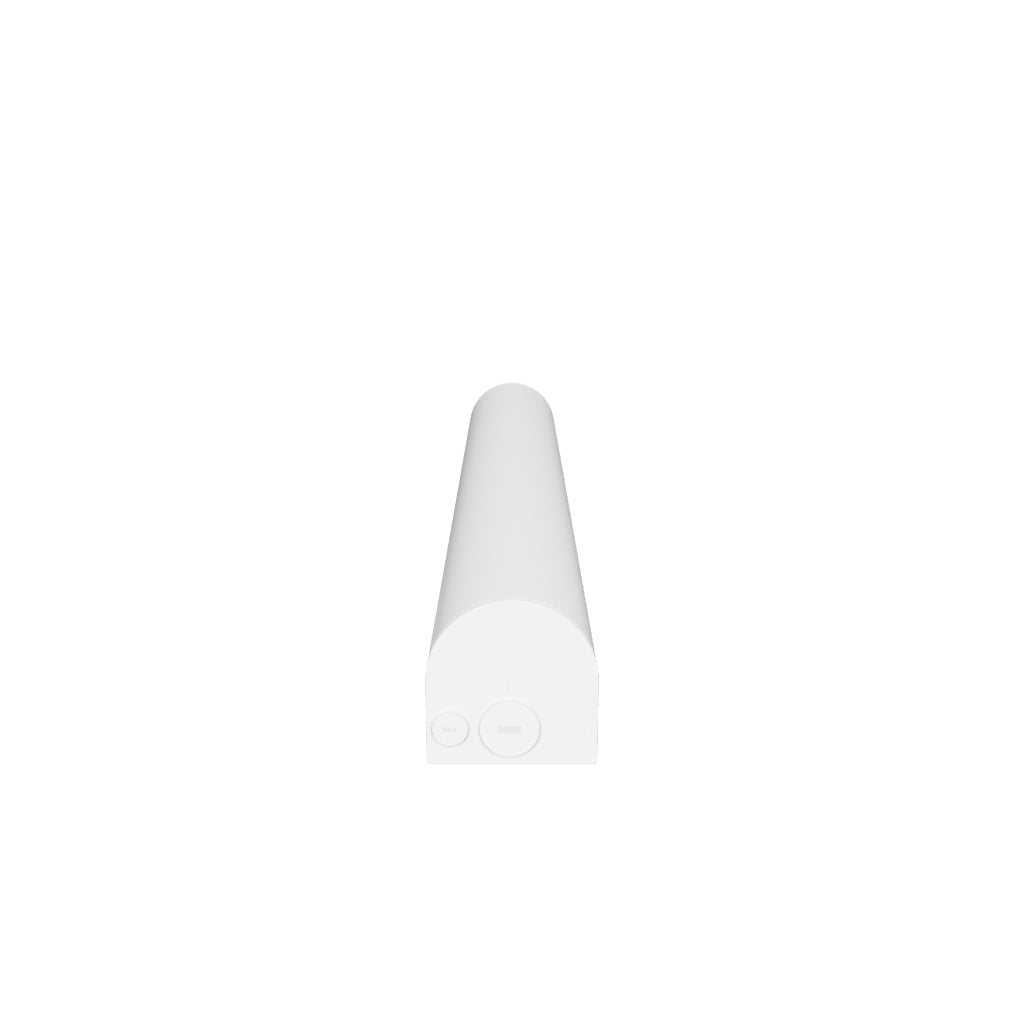

3D viewer 2&
2&
2&
2&

LR25360+EM

2' VERY HIGH OUTPUT LINEAR FIXTURE - 5CCT & 4 WATTAGE SELECTABLE + EM

$0.00
/

LED24/LINEAR/5CCT/4WO/UNV/D/VHO+EM

  • CCT 3000K/3500K/4000K/5000K/6500K
  • Lumen 2000/2500/3000/4000
  • WATT 13/17/21/26
  • Size24"

SPECIFICATIONS

  • Item numberLR25360+EM
  • Item description

    LED24/LINEAR/5CCT/4WO/UNV/D/VHO+EM

  • Size24"
  • Shape LINEAR
  • Dimensions
    • Length 22.20"
    • Width 2.8"
    • Height 3.3"
  • Finish FROSTED
  • MOL 22.20"

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3000K/3500K/4000K/5000K/6500K
  • Lumen 2000/2500/3000/4000
  • Beam Angle 110°
  • CRI 80

ELECTRICAL

  • Power (Wattage) 13/17/21/26
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $3.13
  • Dimmable 0-10V
  • Frequency 50/60Hz
  • Lumen Efficacy 150
  • Operating Temp:
    • Min -4°
    • Max 122°

PACKAGING

  • UPC Barcode 732388930968
  • Master BarCode 10732388930965
  • Master Carton Dimensions:
    • Length 23.30"
    • Width 9.76"
    • Height 6.88"
  • Case Size 6

FEATURES

    80 LIFE HR 50000

CERTIFICATIONS
