LR25366+EM

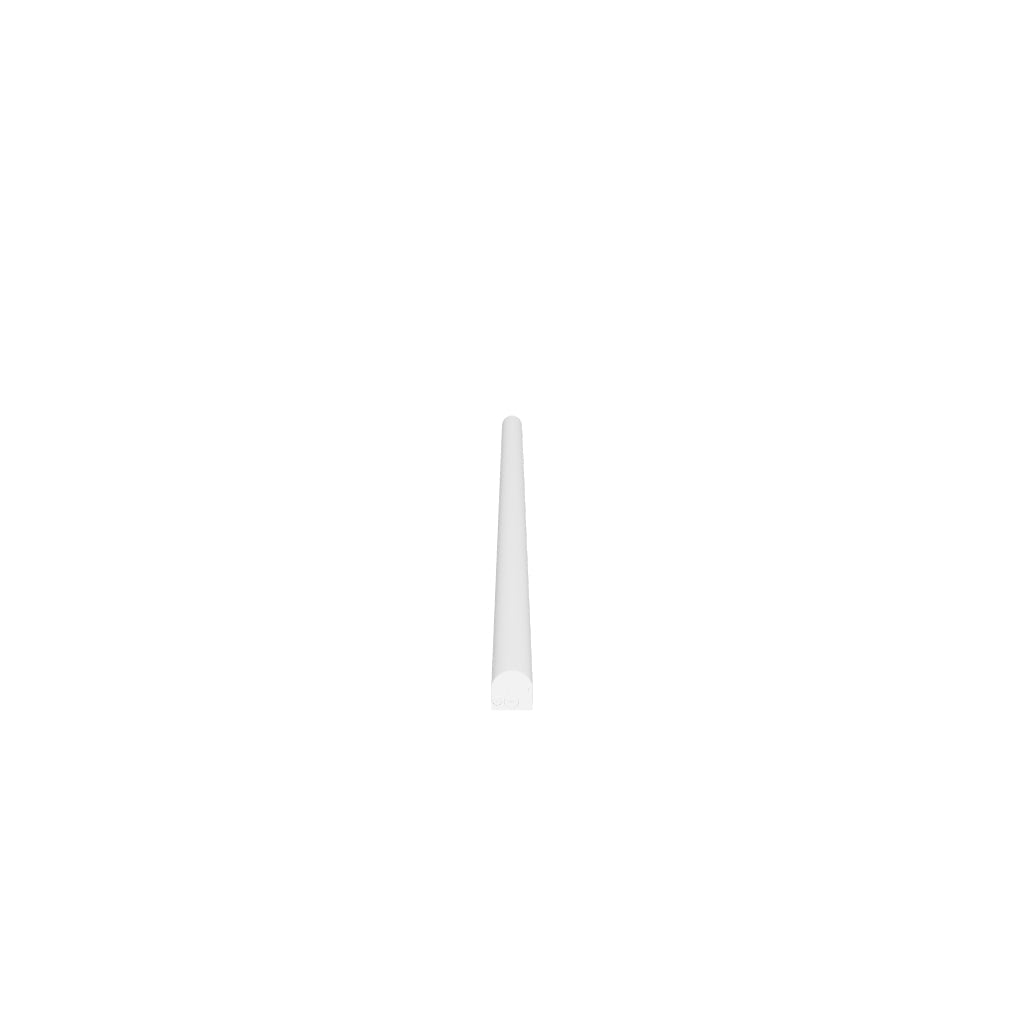

8' VERY HIGH OUTPUT LINEAR FIXTURE SENSOR READY - 5CCT & 4 WATTAGE SELECTABLE + EM
LED96/LINEAR/5CCT/4WO/UNV/D/VHO+EM
SPECIFICATIONS
- Item numberLR25366+EM
- Item description
LED96/LINEAR/5CCT/4WO/UNV/D/VHO+EM
- Size96"
- Shape LINEAR
- Dimensions
- Length 94.20"
- Width 2.8"
- Height 3.3"
- Finish FROSTED
- MOL 94.20"
PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 3000K/3500K/4000K/5000K/6500K
- Lumen 10000/12000/16000/20000
- Beam Angle 110°
- CRI 80
ELECTRICAL
- Power (Wattage) 68/80/106/135
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $16.26
- Dimmable 0-10V
- Frequency 50/60Hz
- Lumen Efficacy 150
- Operating Temp:
- Min -4°
- Max 122°
PACKAGING
- UPC Barcode 732388931163
- Master BarCode 10732388931160
- Master Carton Dimensions:
- Length 95.55"
- Width 6.6"
- Height 7.48"
- Case Size 4
