LR25433

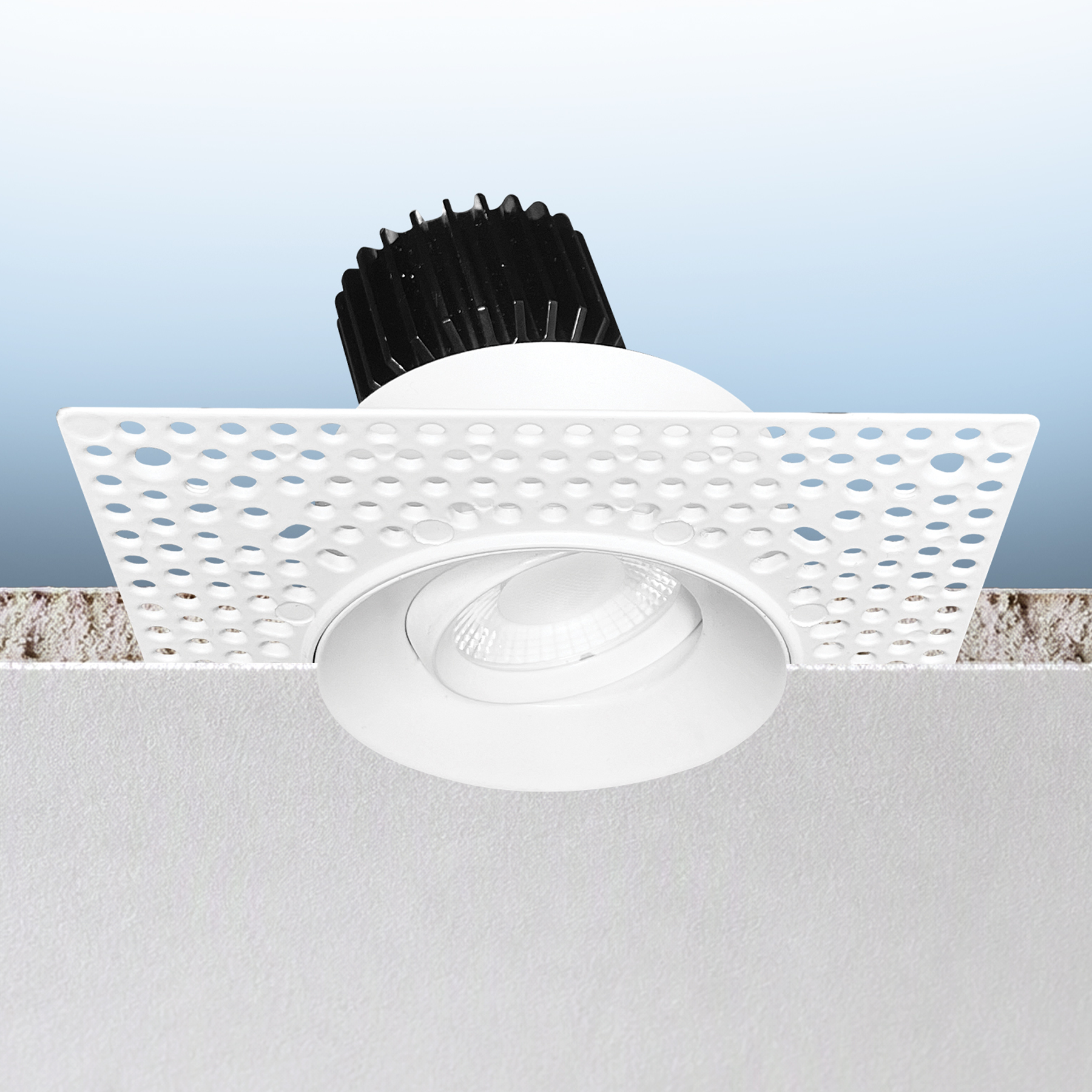

3" GIMBAL PUSH N' LOCK TRIMLESS SPOTLIGHT - CCT SELECTABLE DUAL DIMMING/UNIVERSAL VOLTAGE

LED/TLMD3/GB/5CCT/RD/WT/UNV/DD/FL

LR25433

3" GIMBAL PUSH N' LOCK TRIMLESS SPOTLIGHT - CCT SELECTABLE DUAL DIMMING/UNIVERSAL VOLTAGE

$0.00
/

LED/TLMD3/GB/5CCT/RD/WT/UNV/DD/FL

  • CCT 2700K/3000K/3500K/4000K/50000K
  • Lumen 1100
  • WATT 12
  • Size3"

SPECIFICATIONS

  • Item numberLR25433
  • Item description

    LED/TLMD3/GB/5CCT/RD/WT/UNV/DD/FL

  • Size3"
  • Shape FLOATING GIMBAL TRIMLESS
  • Dimensions
    • Length 5.07"
    • Width 5.07"
    • Depth 3.43"
  • Cutout Ƙ3.38"
  • Finish WHITE

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 2700K/3000K/3500K/4000K/50000K
  • Lumen 1100
  • Beam Angle 38Āŗ
  • CRI 90

ELECTRICAL

  • Power (Wattage) 12
  • Input Volts 120V
  • Rated Lifetime 50000
  • Yearly Cost $1.44
  • Dimmable DUAL DIMMING TRIAC/0-10V
  • Power Factor 0.9
  • Input Current 270mA
  • Frequency 60Hz
  • Lumen Efficacy 91
  • Operating Temp:
    • Min -4Āŗ
    • Max 113Āŗ

PACKAGING

  • UPC Barcode 732388922468
  • Master BarCode 10732388922465
  • Master Carton Dimensions:
    • Length 16.92"
    • Width 16.92"
    • Height 14.17"
  • Case Size 24

FEATURES

    90 LIFE HR 50000

CERTIFICATIONS
