LR25436

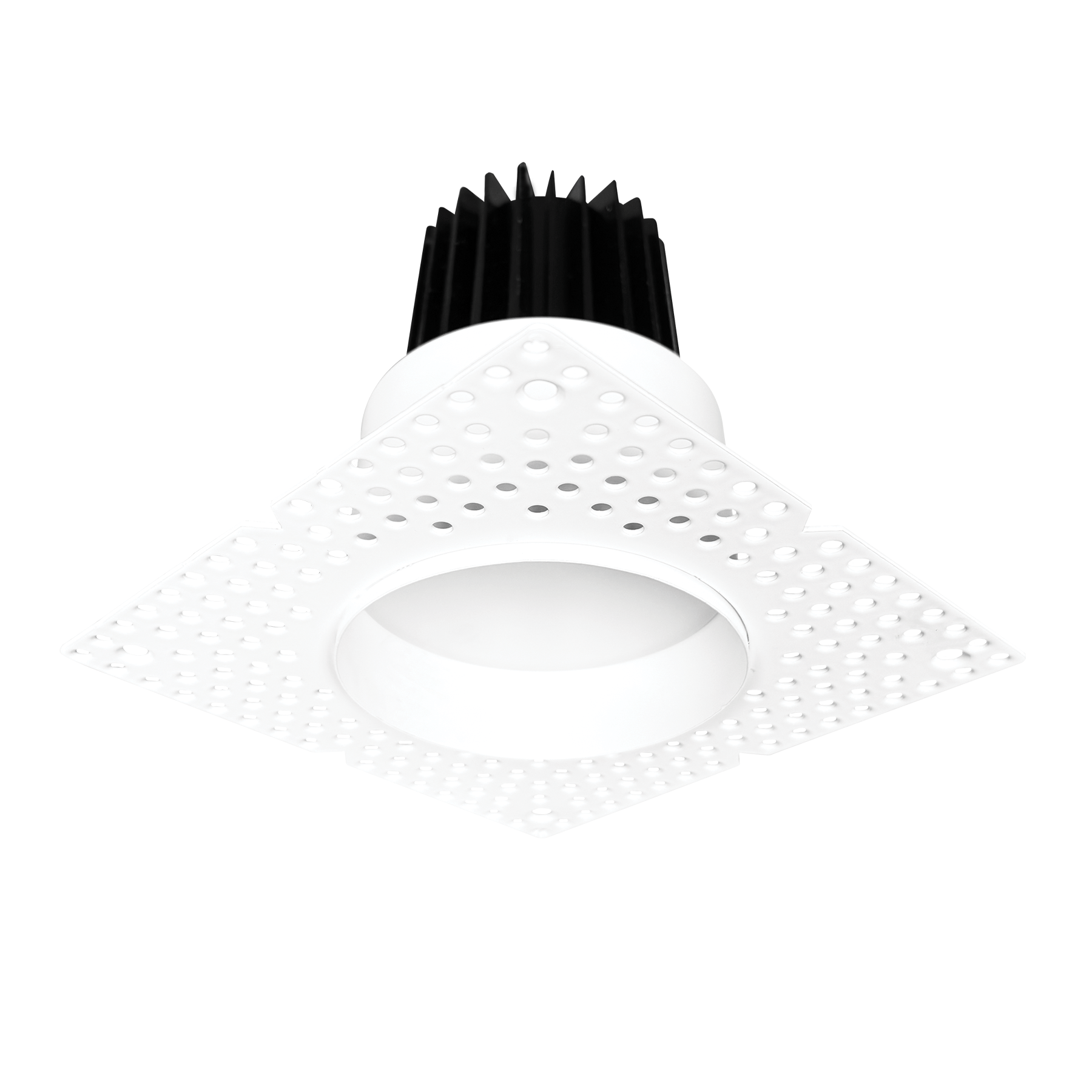

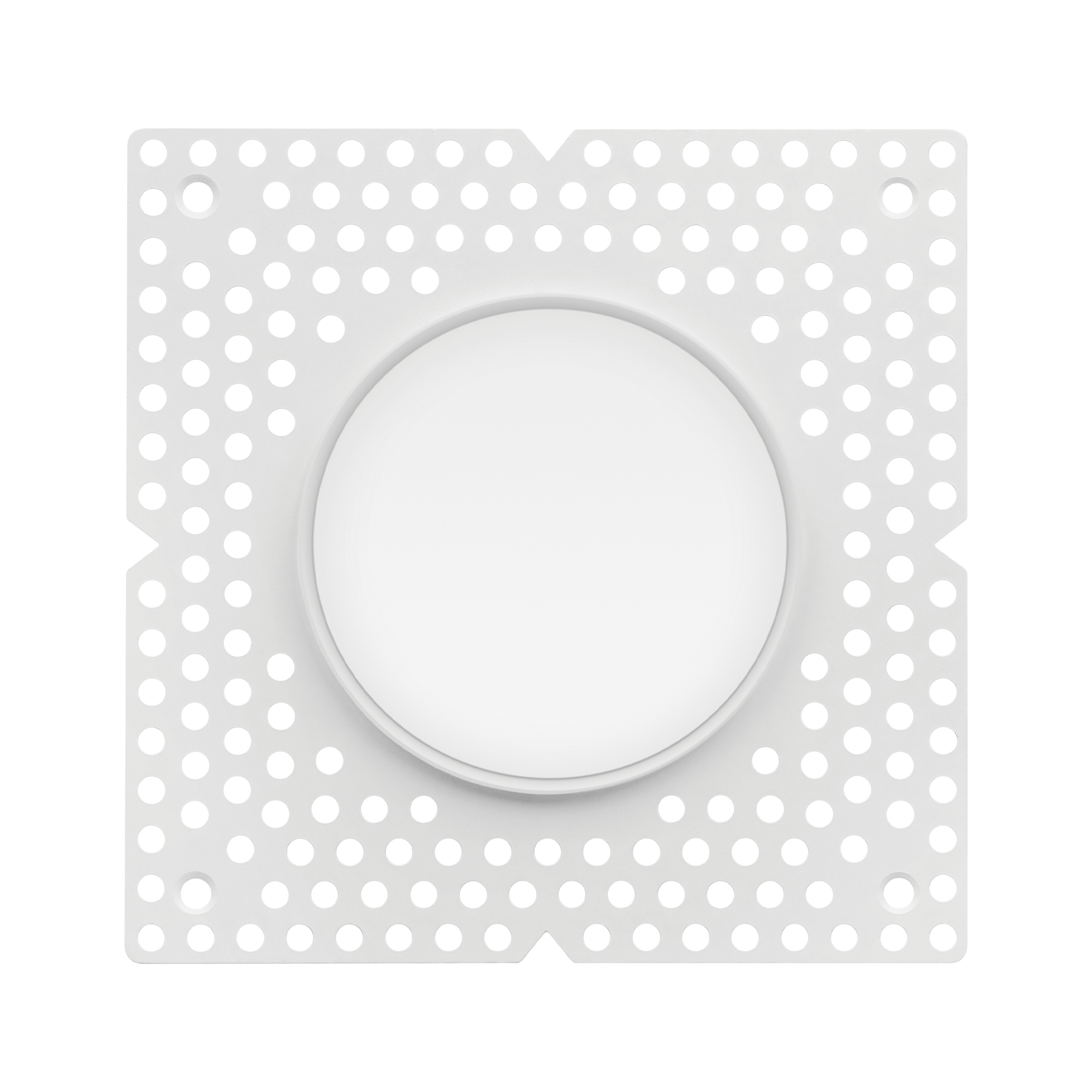

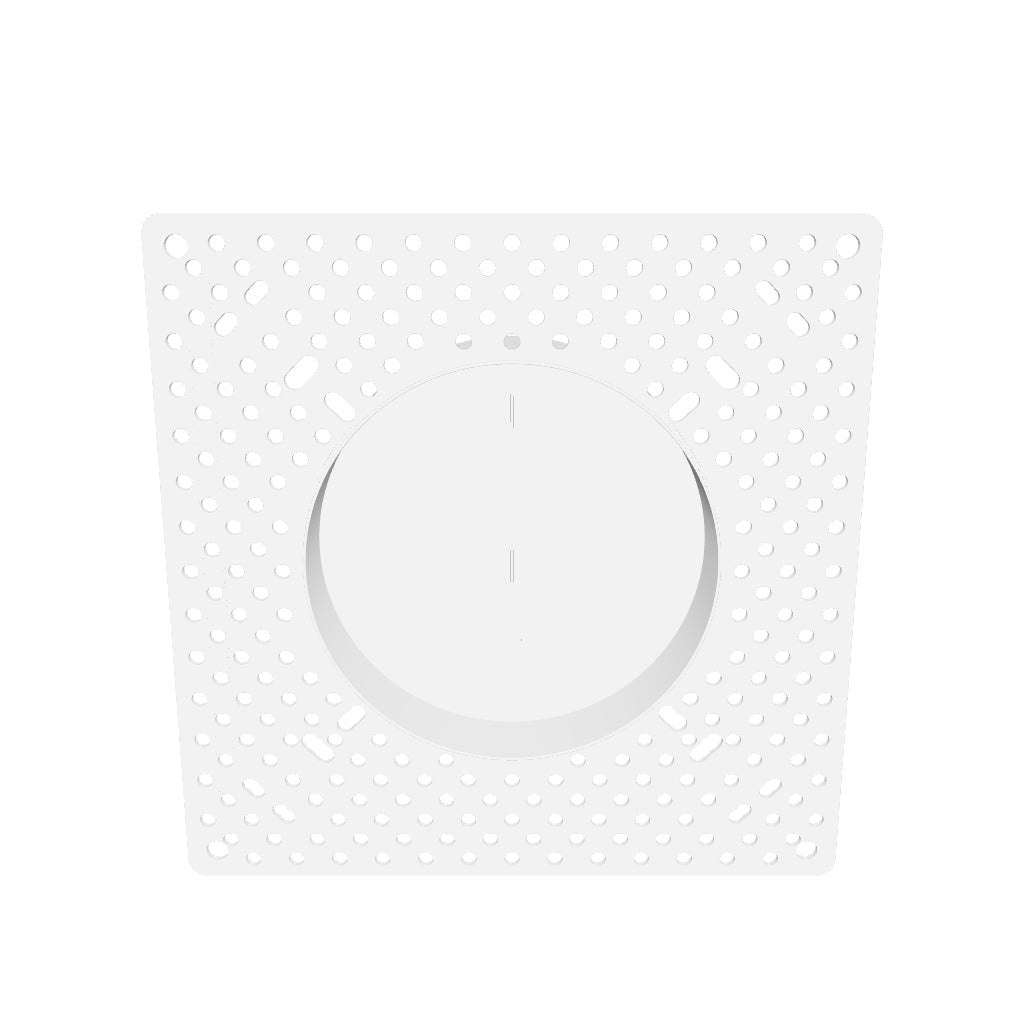

3" REGRESSED TRIMLESS PUSH N' LOCK SPOTLIGHT - CCT SELECTABLE UNIVERSAL VOLTAGE/DUAL DIMMING/UNIVERSAL VOLTAGE ROUND
LED/TLMD3/RGS/5CCT/RD/WT/UNV/DD/FL
SPECIFICATIONS
- Item numberLR25436
- Item description
LED/TLMD3/RGS/5CCT/RD/WT/UNV/DD/FL
- Size3"
- Shape REGRESSED TRIMLESS
- Dimensions
- Length 5.07"
- Width 5.07"
- Depth 4.52"
- Cutout Ø3.38"
- Finish WHITE

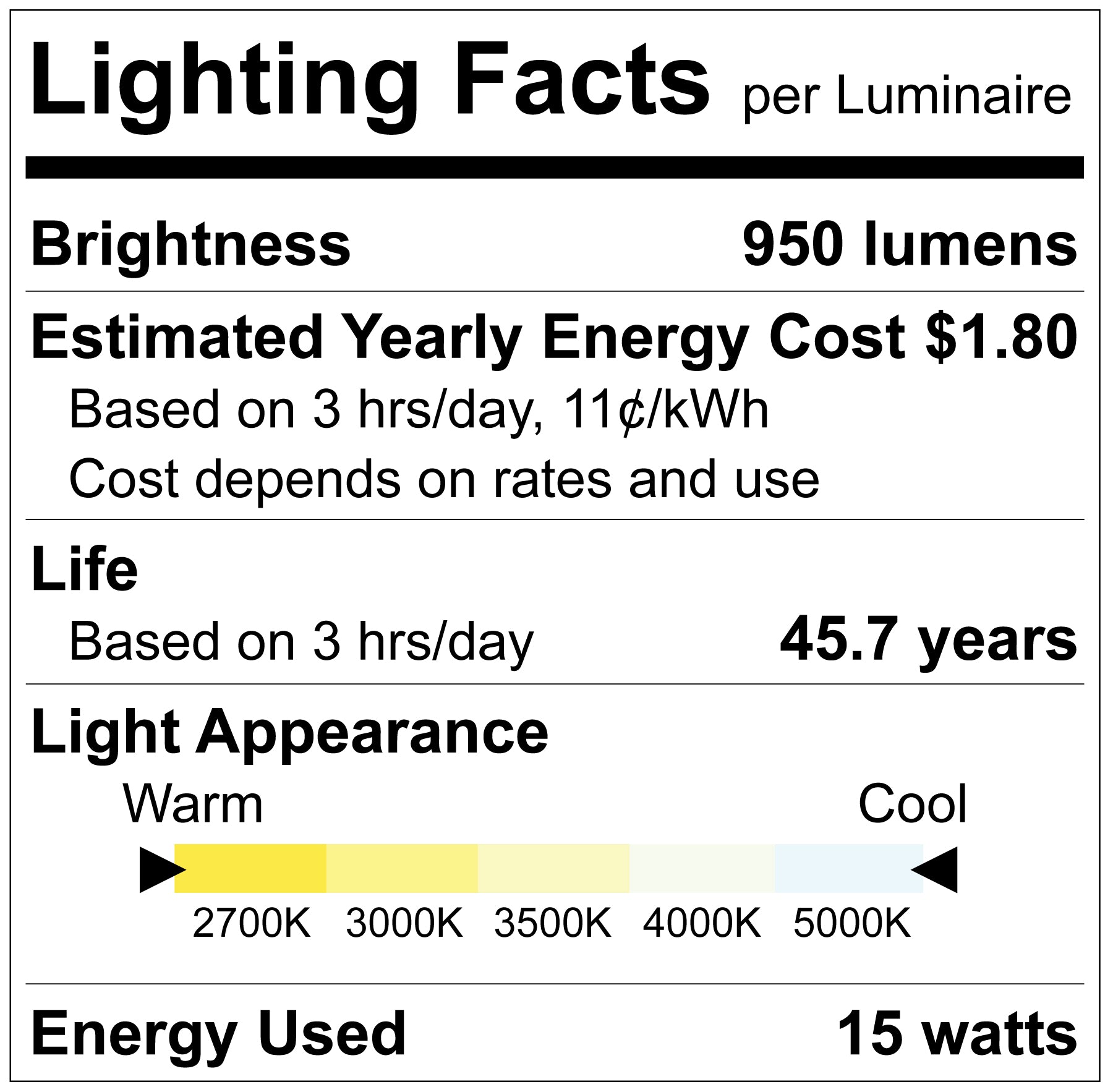

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/50000K
- Lumen 950

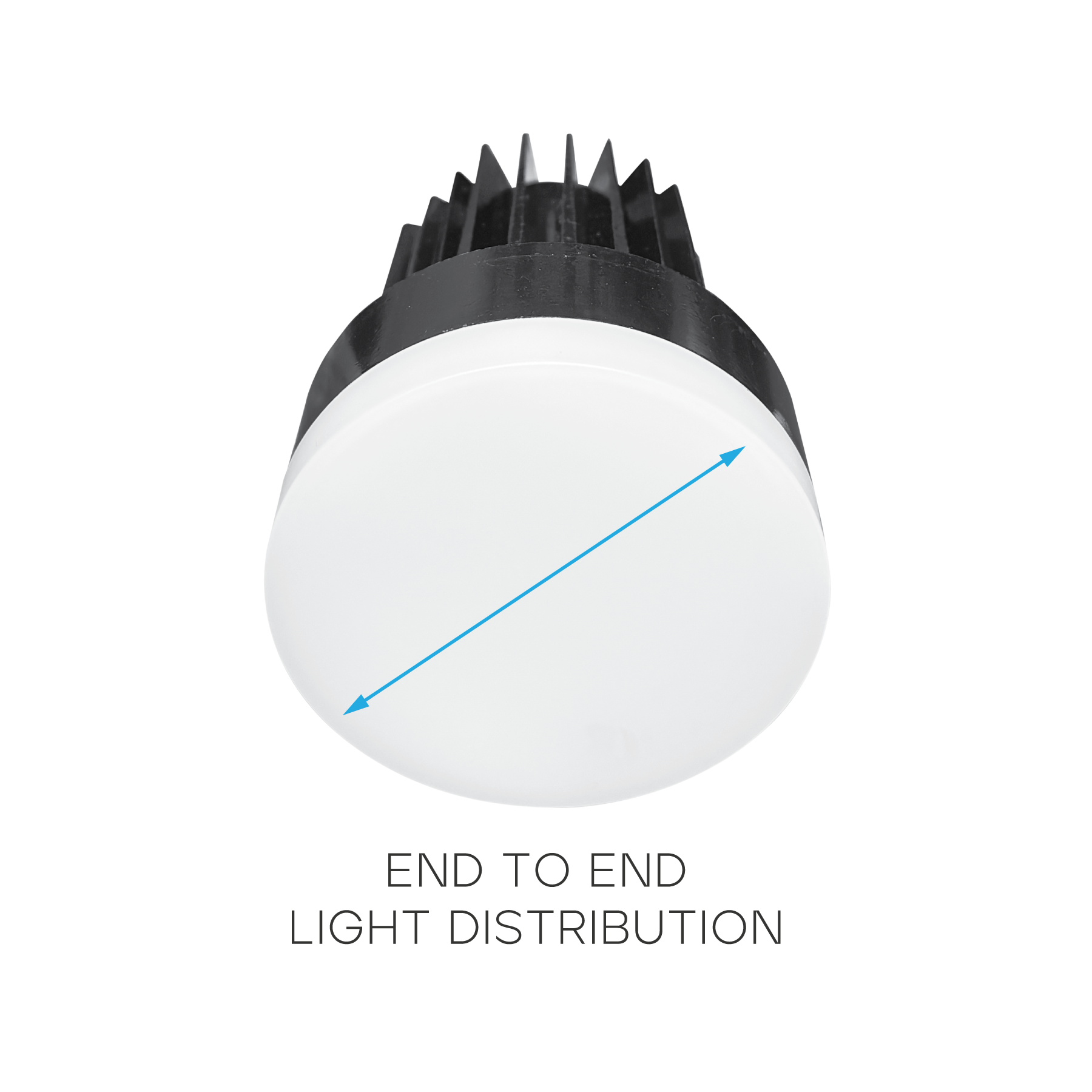

- Beam Angle 110º
- CRI 90
ELECTRICAL
- Power (Wattage) 15
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $1.80
- Dimmable DUAL DIMMING TRIAC/0-10V
- Power Factor 0.9
- Frequency 60Hz
- Lumen Efficacy 63
- Operating Temp:
- Min -4º
- Max 113º
PACKAGING
- UPC Barcode 732388934164
- Master BarCode 10732388934161
- Master Carton Dimensions:
- Length 17.12"
- Width 17.32"
- Height 16.34"
- Case Size 24
