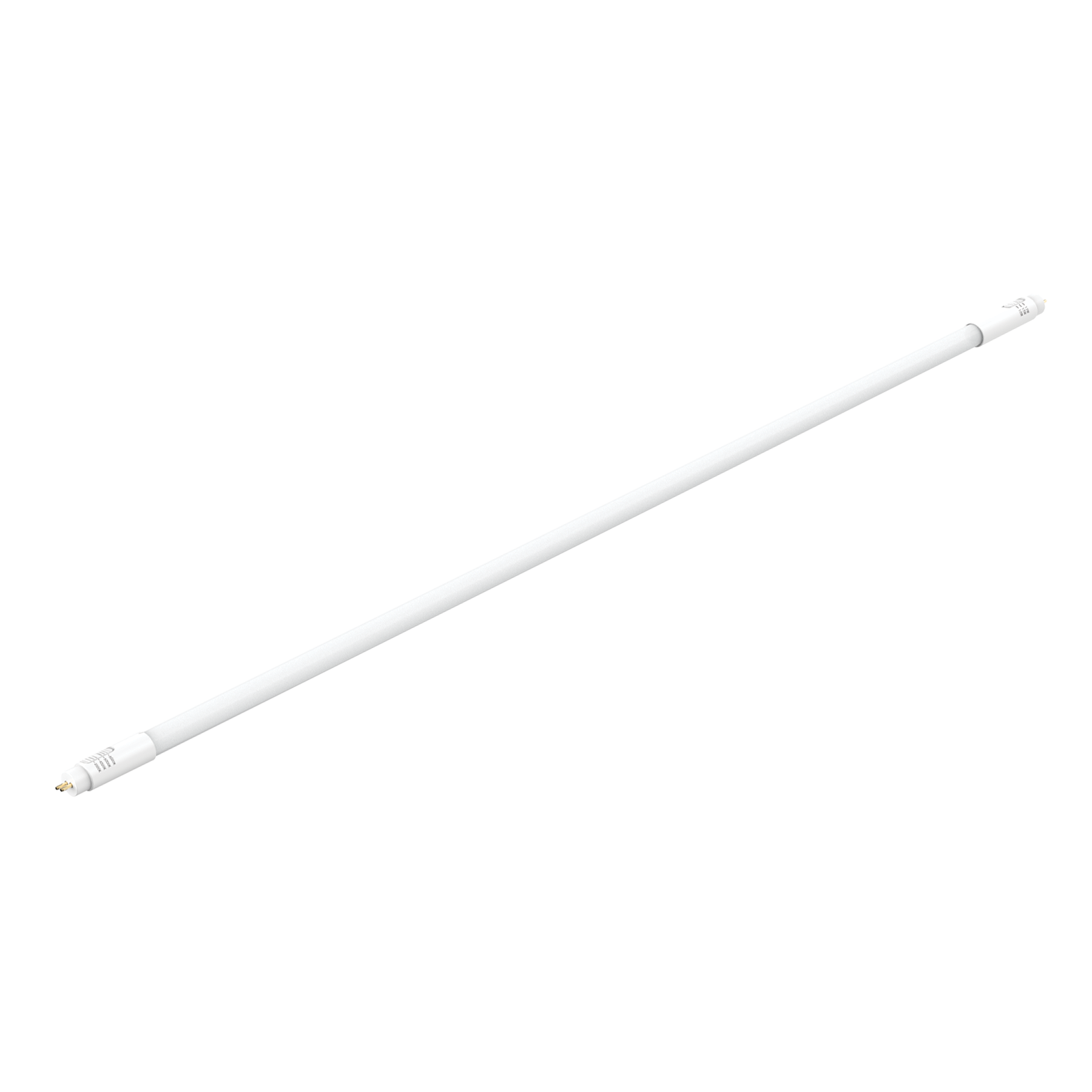

LR34167

36" T5 BYPASS BALLAST - 4CCT & 3 WATTAGE SELECTABLE

LED18T5/4CCT/3WO/36/SG/B

LR34167

36" T5 BYPASS BALLAST - 4CCT & 3 WATTAGE SELECTABLE

$0.00
/

LED18T5/4CCT/3WO/36/SG/B

  • CCT 3500K/4000K/5000K/6500K
  • Lumen 1620/2025/2500
  • WATT 12/15/18
  • Size36"

SPECIFICATIONS

  • Item numberLR34167
  • Item description

    LED18T5/4CCT/3WO/36/SG/B

  • Size36"
  • Shape T5
  • Base G5
  • Dimensions
    • Length 33.98"
    • Width 0.62"
  • Finish FROST
  • MOL 33.98"

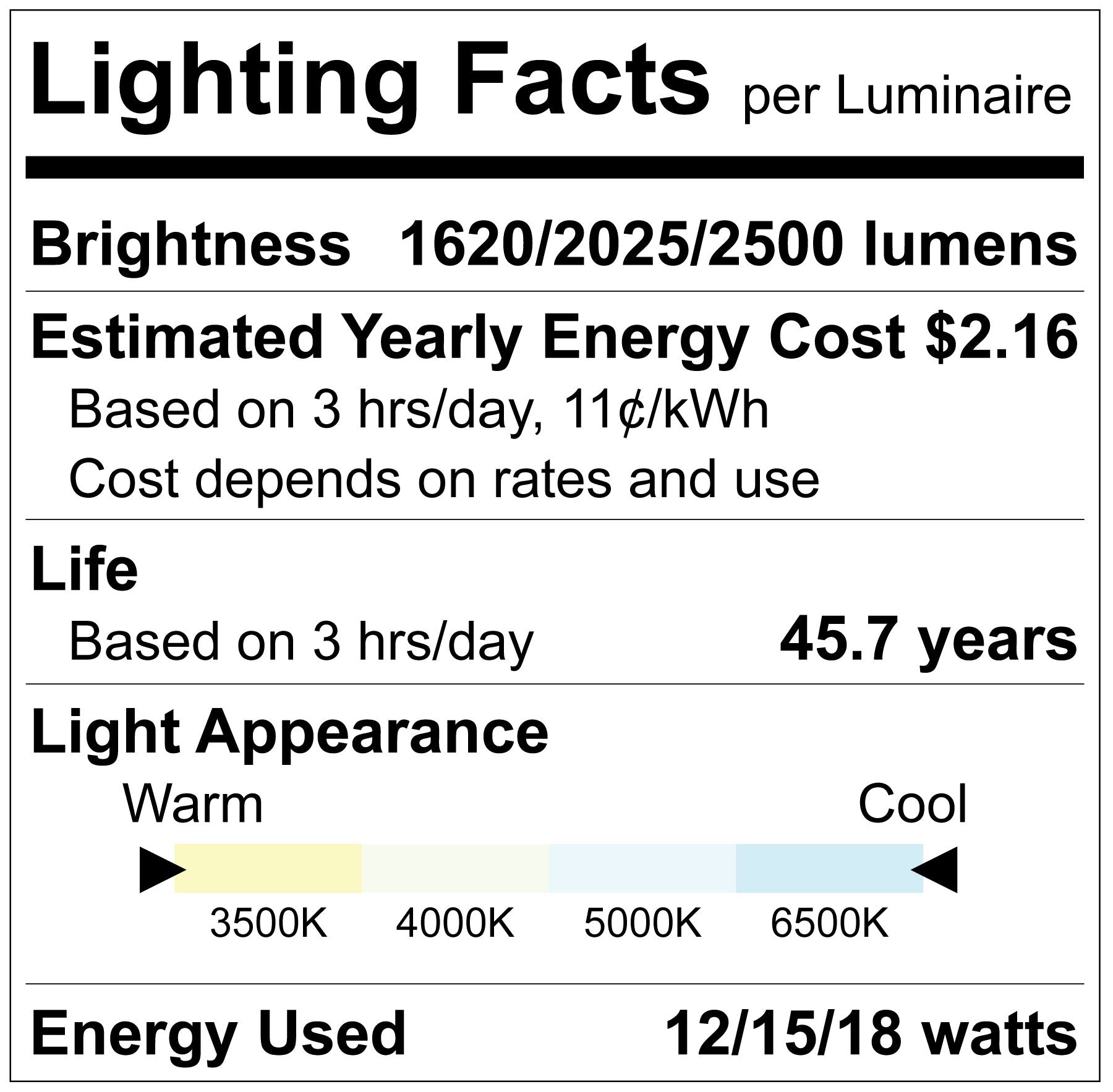

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3500K/4000K/5000K/6500K
  • Lumen 1620/2025/2500
  • Beam Angle 180Āŗ
  • CRI 83

ELECTRICAL

  • Power (Wattage) 12/15/18
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $2.16
  • Power Factor 0.9
  • Frequency 50/60Hz
  • Bypass 1 Side Input YES
  • Bypass 2 Side Input YES
  • Lumen Efficacy 135
  • Operating Temp:
    • Min -4Āŗ
    • Max 113Āŗ

PACKAGING

  • UPC Barcode 608870507027
  • Master BarCode 10608870507024
  • Master Carton Dimensions:
    • Length 36.41"
    • Width 4.33"
    • Height 5.51"
  • Case Size 30

FEATURES

    83 LIFE HR 50000

CERTIFICATIONS
