LR34168

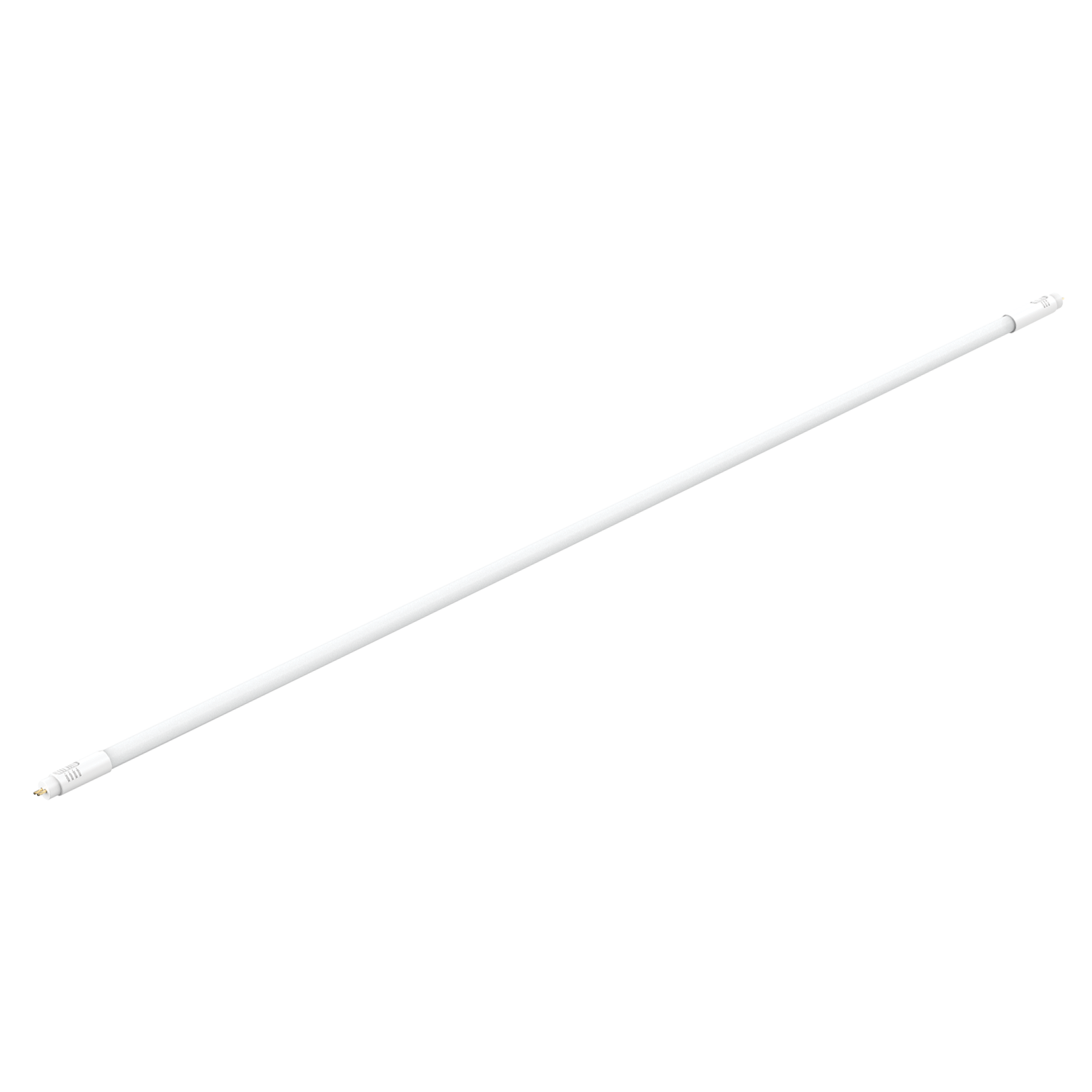

48" T5 BYPASS BALLAST - 4CCT & 3 WATTAGE SELECTABLE

LED24T5/4CCT/3WO/48/SG/B

LR34168

48" T5 BYPASS BALLAST - 4CCT & 3 WATTAGE SELECTABLE

$0.00
/

LED24T5/4CCT/3WO/48/SG/B

  • CCT 3500K/4000K/5000K/6500K
  • Lumen 2000/2660/3200
  • WATT 15/20/24
  • Size48"

SPECIFICATIONS

  • Item numberLR34168
  • Item description

    LED24T5/4CCT/3WO/48/SG/B

  • Size48"
  • Shape T5
  • Base G5
  • Dimensions
    • Length 45.79"
    • Width 0.62"
  • Finish FROST
  • MOL 45.79"

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3500K/4000K/5000K/6500K

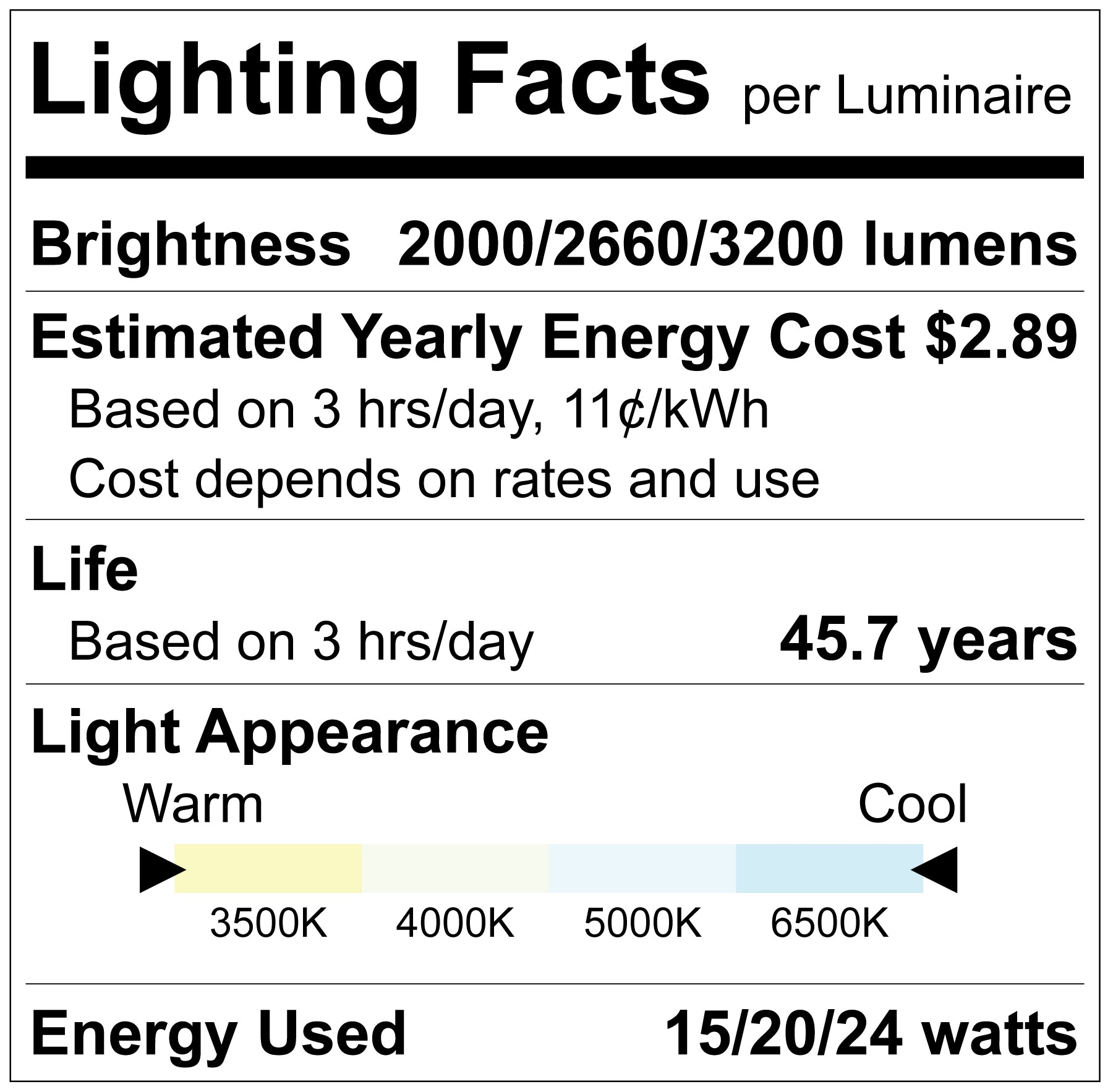

  • Lumen 2000/2660/3200
  • Beam Angle 180Āŗ
  • CRI 83

ELECTRICAL

  • Power (Wattage) 15/20/24
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $2.89
  • Power Factor 0.9
  • Frequency 50/60Hz
  • Bypass 1 Side Input YES
  • Bypass 2 Side Input YES
  • Lumen Efficacy 135
  • Operating Temp:
    • Min -4Āŗ
    • Max 113Āŗ

PACKAGING

  • UPC Barcode 608870506921
  • Master BarCode 10608870506928
  • Master Carton Dimensions:
    • Length 48.22"
    • Width 4.33"
    • Height 5.51"
  • Case Size 30

FEATURES

    83 LIFE HR 50000

CERTIFICATIONS
