SPECIFICATIONS
- Item numberLR40303
- Item description

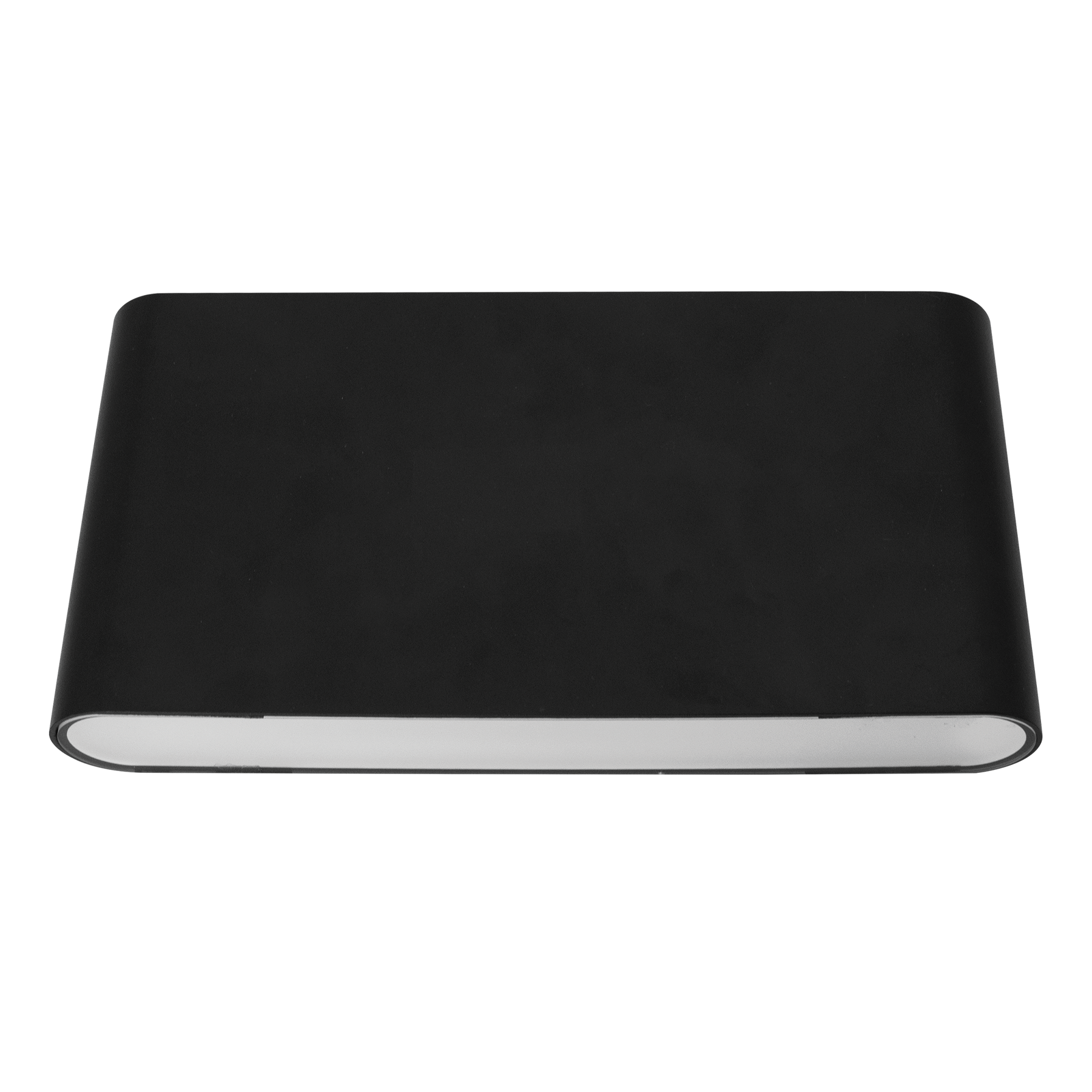

LEDWS10/UD/24W/5CCT/RD/BK
- Size10"

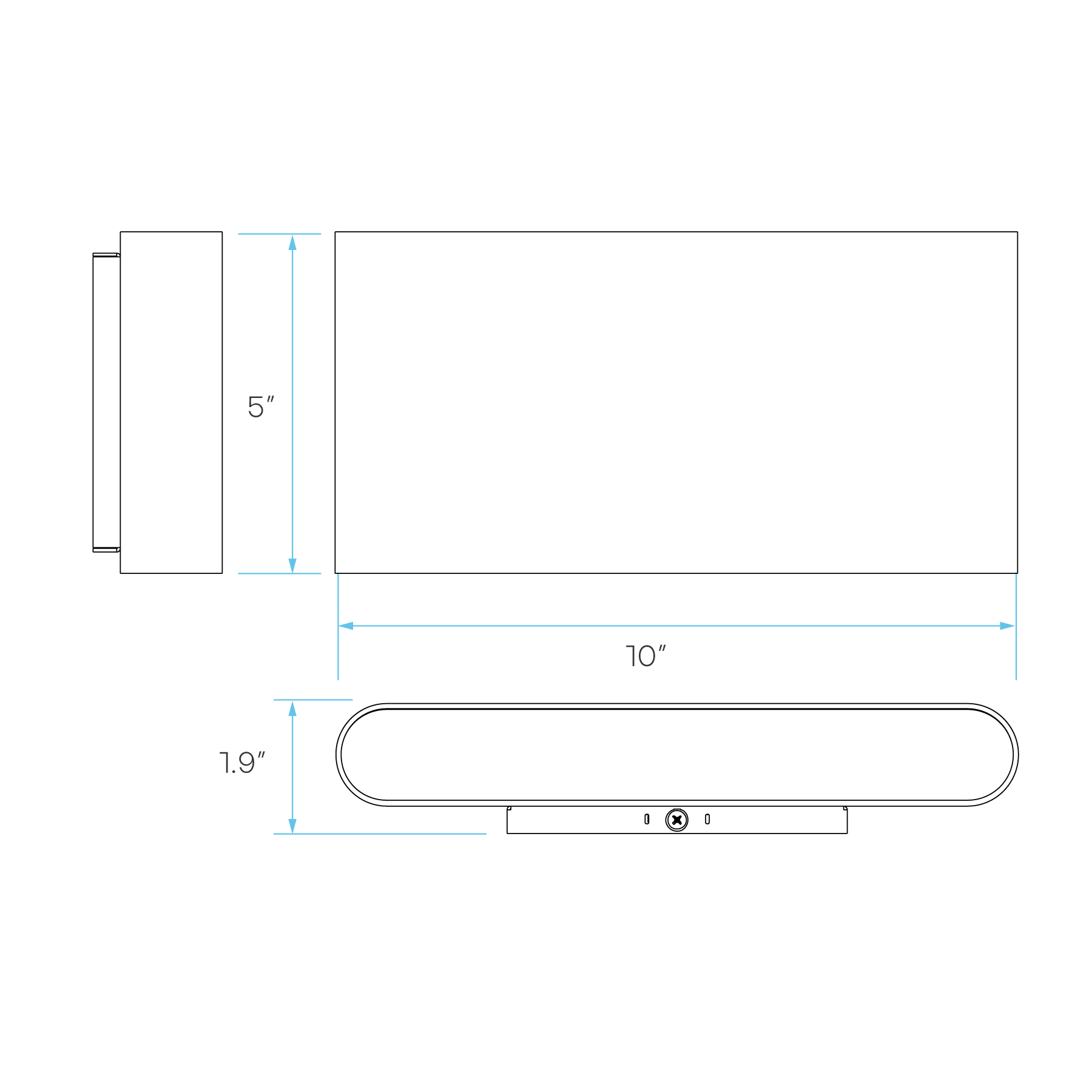

- Dimensions
- Width 10"
- Height 5"
- Depth 1.9"
- Finish BLACK

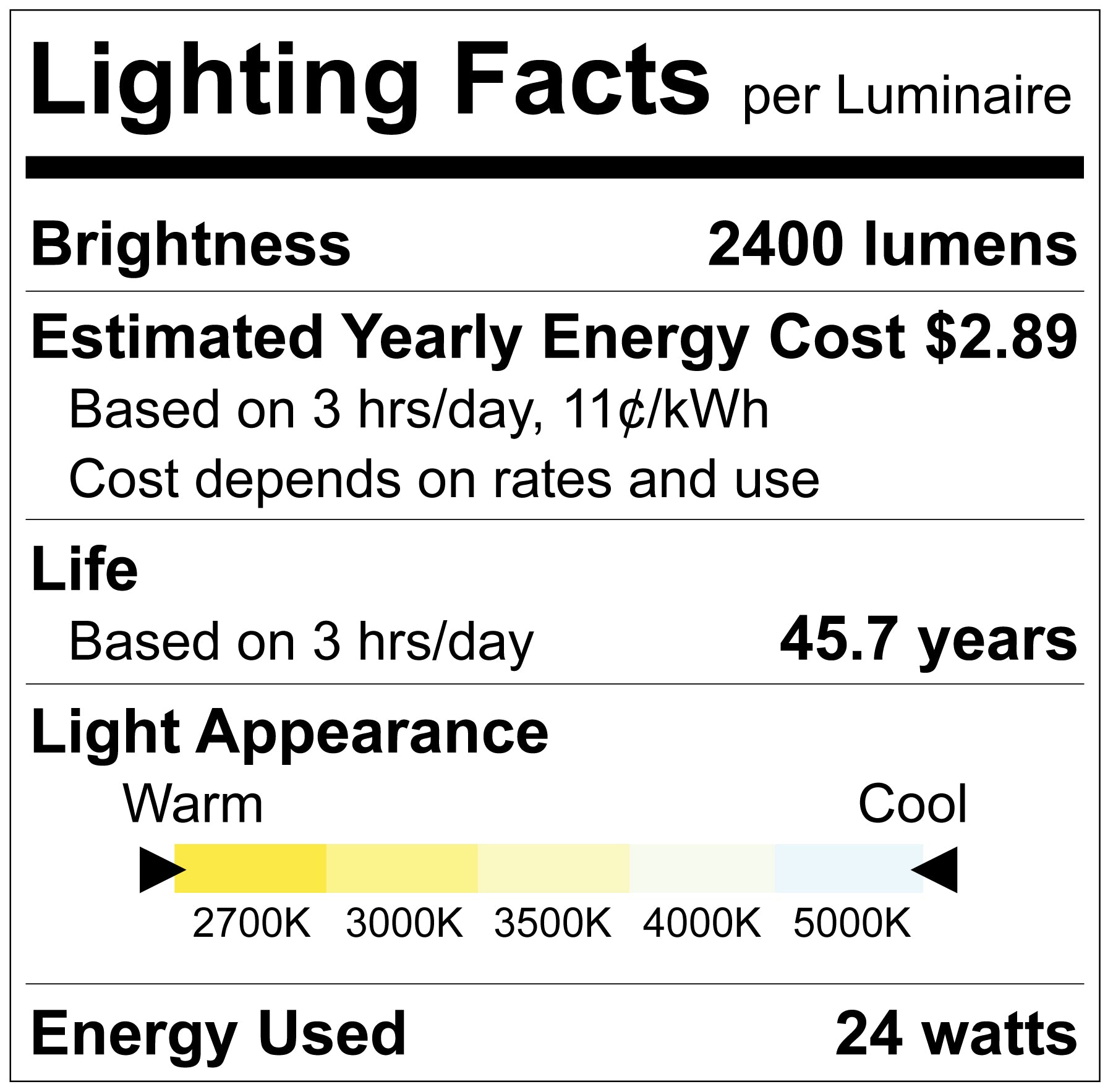

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 2400
- Beam Angle 90Ā°
- CRI 90
ELECTRICAL
- Power (Wattage) 24
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $2.89
- Dimmable TRIAC @120V
- Power Factor 0.9
- Frequency 50/60Hz
- Lumen Efficacy 83
- Operating Temp:
- Min -4Ā°
- Max 104Ā°
PACKAGING
- UPC Barcode 732388930661
- Master BarCode 10732388930668
- Master Carton Dimensions:
- Length 18.03"
- Width 10.86"
- Height 6.50"
- Case Size 8
