LR40543

80W ADJUSTABLE WALLPACK 3CCT & 3 WATTAGE SELECTABLE - ADJUSTABLE THROW

LEDAWP80/3WO/3CCT/B/D/PC

LR40543

80W ADJUSTABLE WALLPACK 3CCT & 3 WATTAGE SELECTABLE - ADJUSTABLE THROW

$0.00
/

LEDAWP80/3WO/3CCT/B/D/PC

  • CCT 3000K/4000K/5000K
  • Lumen 9000/10500/12000
  • WATT 60/70/80

SPECIFICATIONS

  • Item numberLR40543
  • Item description

    LEDAWP80/3WO/3CCT/B/D/PC

  • Shape WALLPACK
  • Dimensions
    • Length 14.01"
    • Height 8.97"
    • Depth 9.50"
  • Finish BLACK

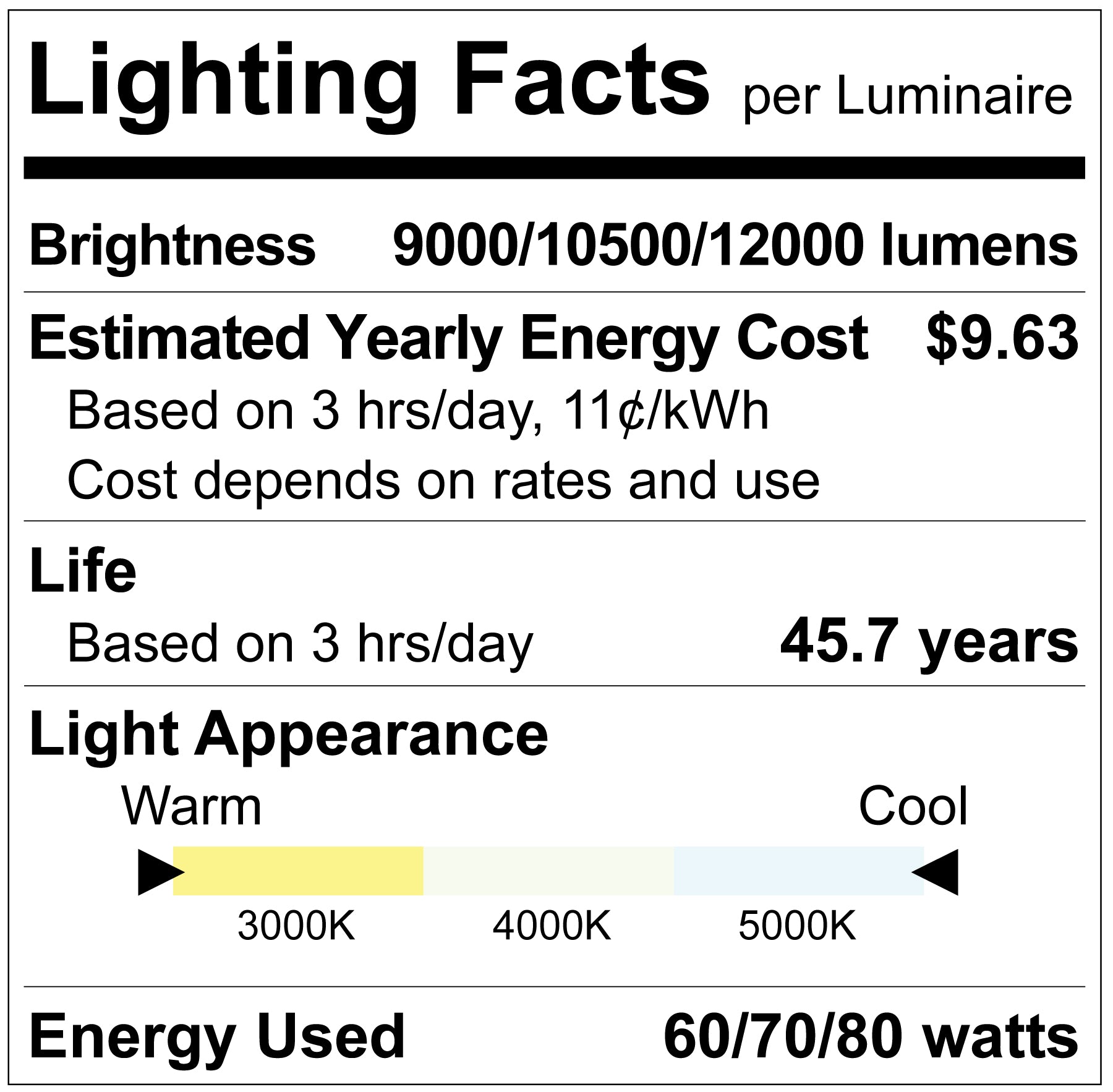

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3000K/4000K/5000K
  • Lumen 9000/10500/12000

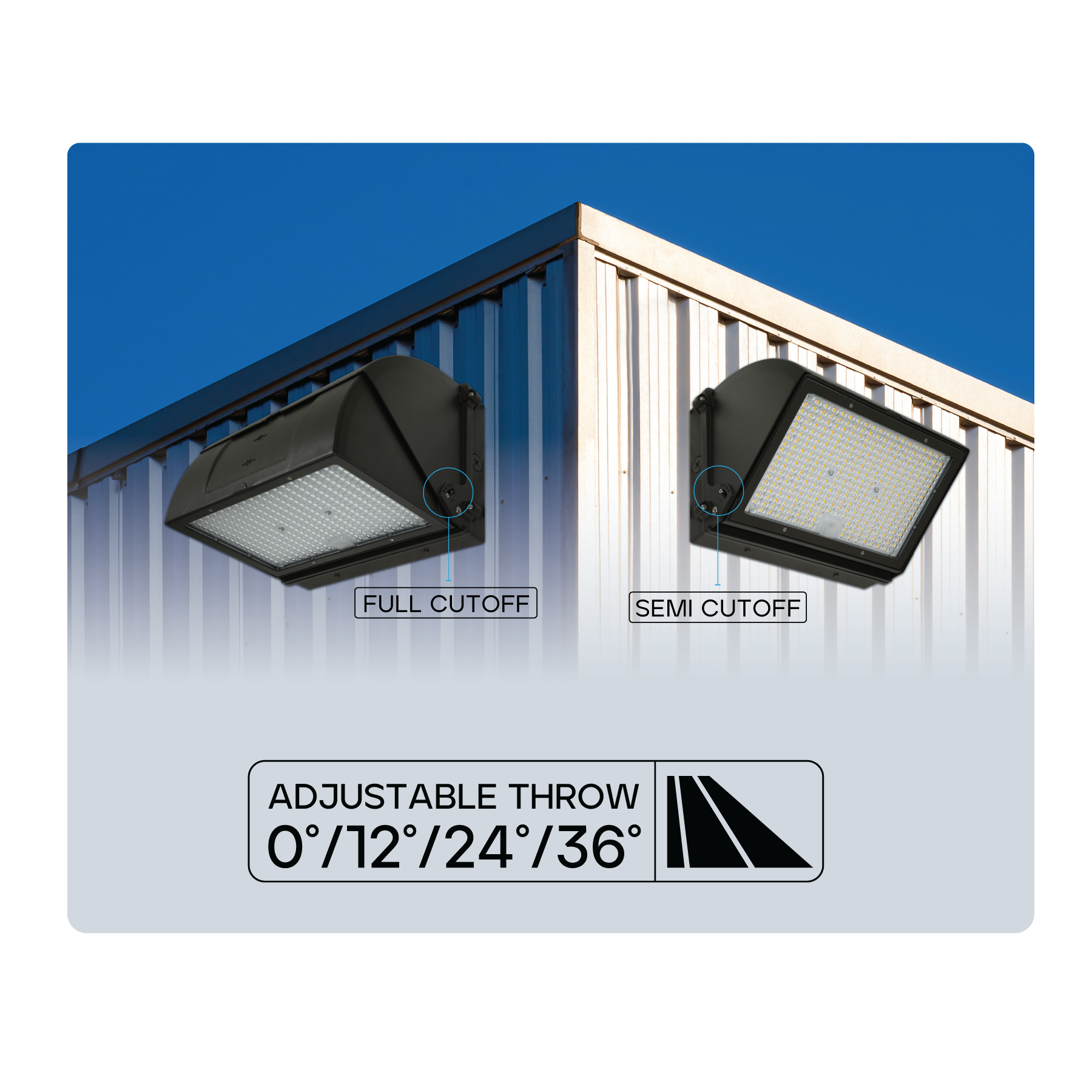

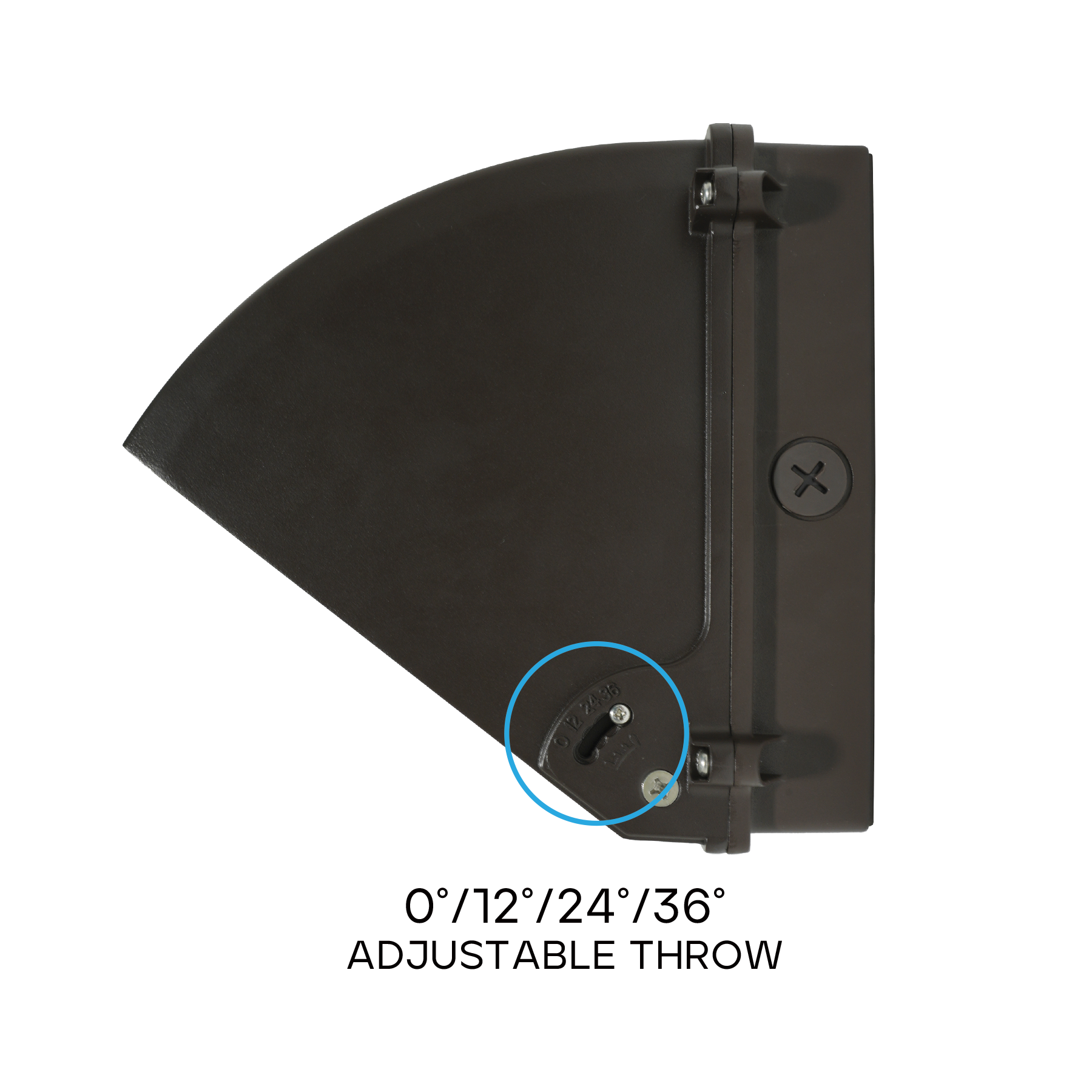

  • Beam Angle 0Āŗ/12Āŗ/24Āŗ/36Āŗ - ADJUSTABLE
  • CRI 80

ELECTRICAL

  • Power (Wattage) 60/70/80
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $9.63
  • Dimmable 0-10V
  • Power Factor 0.9
  • Frequency 50/60Hz
  • Lumen Efficacy 150
  • Operating Temp:
    • Min -40Ā°
    • Max 122Ā°

PACKAGING

  • UPC Barcode 732388933662
  • Master BarCode 10732388933669
  • Master Carton Dimensions:
    • Length 15.28"
    • Width 10.75"
    • Height 10.12"
  • Case Size 1

FEATURES

    80 LIFE HR 50000

CERTIFICATIONS
