LR40545

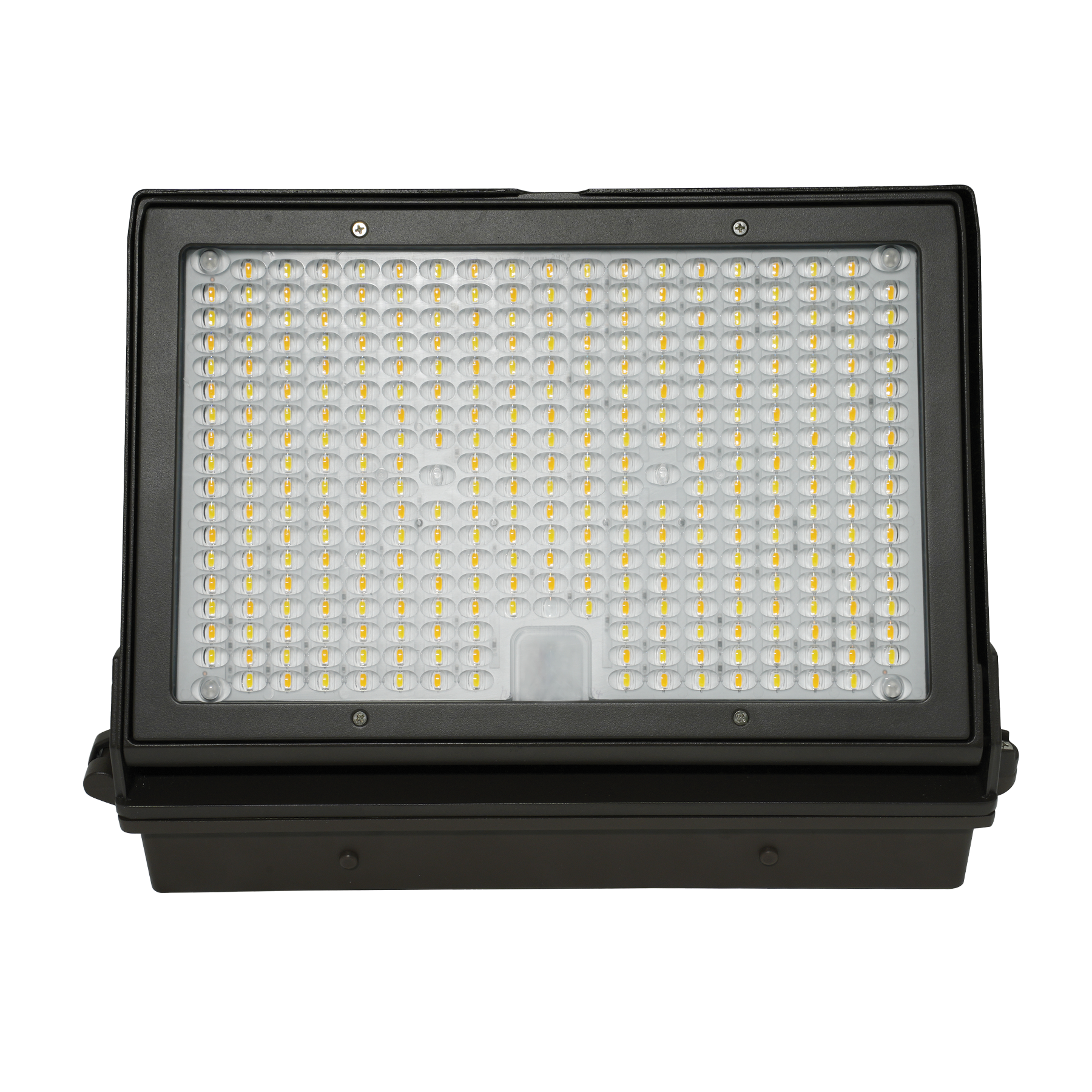

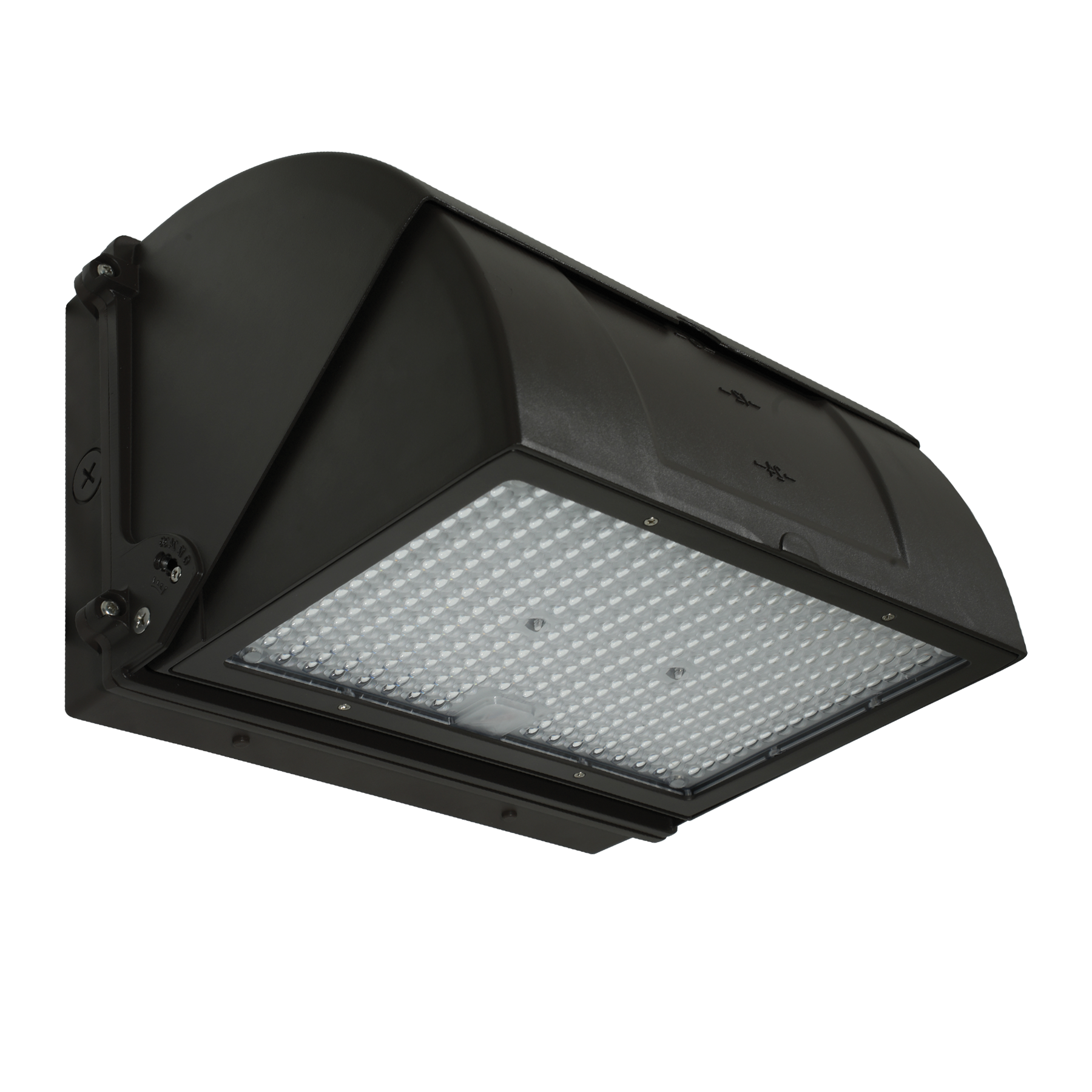

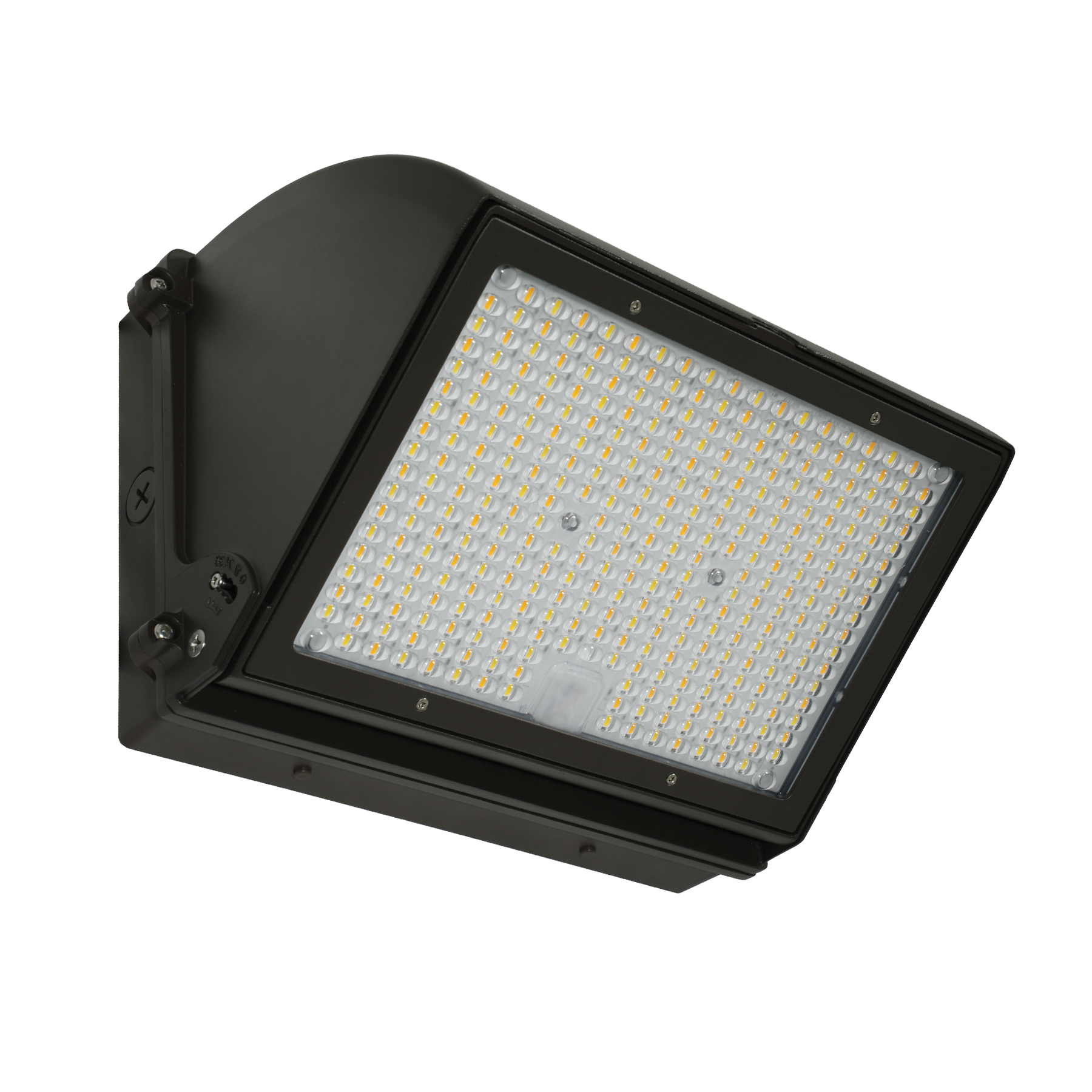

160W ADJUSTABLE WALLPACK 3CCT & 3 WATTAGE SELECTABLE - ADJUSTABLE THROW

LEDAWP160/3WO/3CCT/B/D/PC

LR40545

160W ADJUSTABLE WALLPACK 3CCT & 3 WATTAGE SELECTABLE - ADJUSTABLE THROW

$0.00
/

LEDAWP160/3WO/3CCT/B/D/PC

  • CCT 3000K/4000K/5000K
  • Lumen 18000/21000/24000
  • WATT 120/140/160

SPECIFICATIONS

  • Item numberLR40545
  • Item description

    LEDAWP160/3WO/3CCT/B/D/PC

  • Shape WALLPACK
  • Dimensions
    • Length 14.01"
    • Height 8.97"
    • Depth 9.50"
  • Finish BLACK

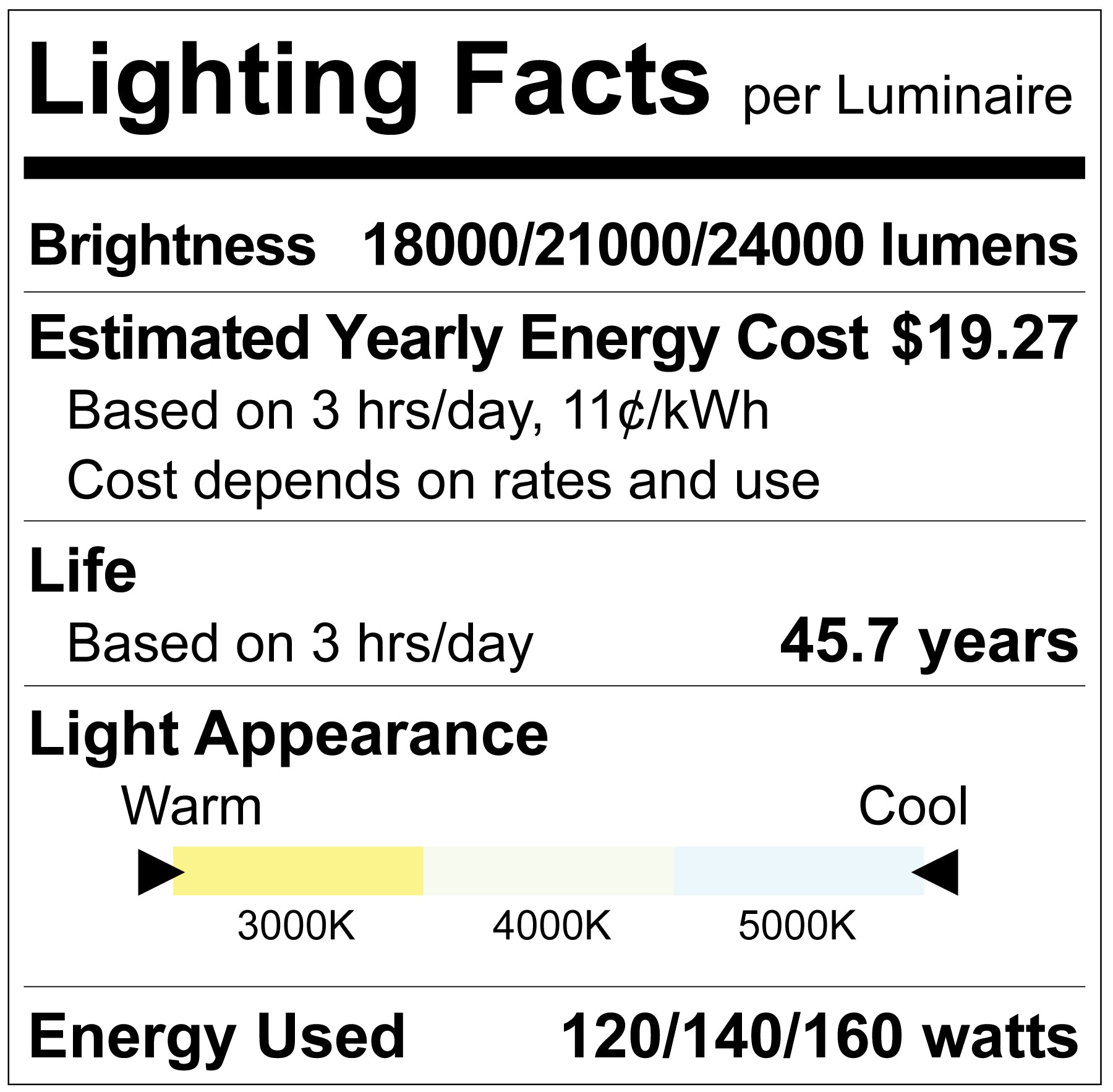

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3000K/4000K/5000K
  • Lumen 18000/21000/24000

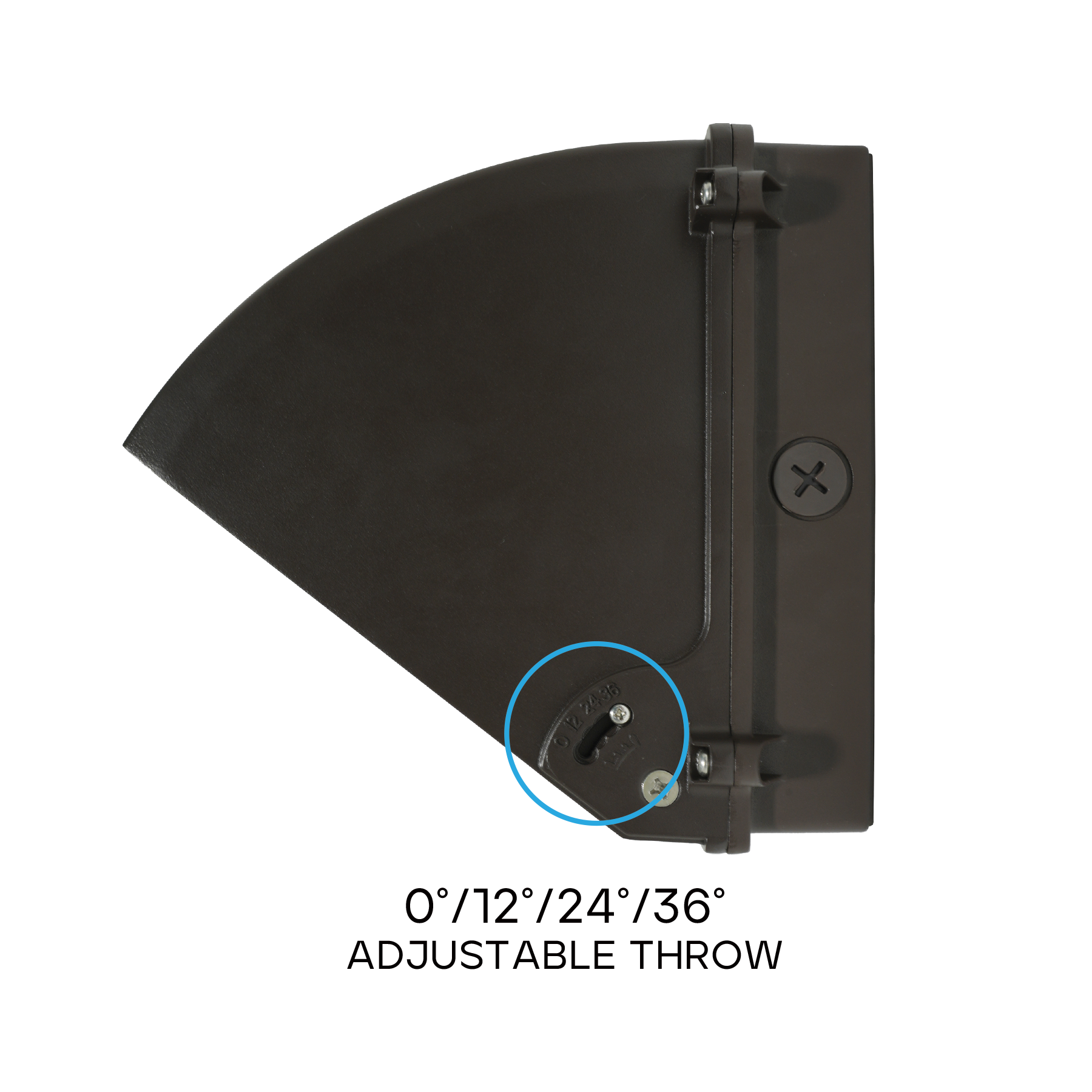

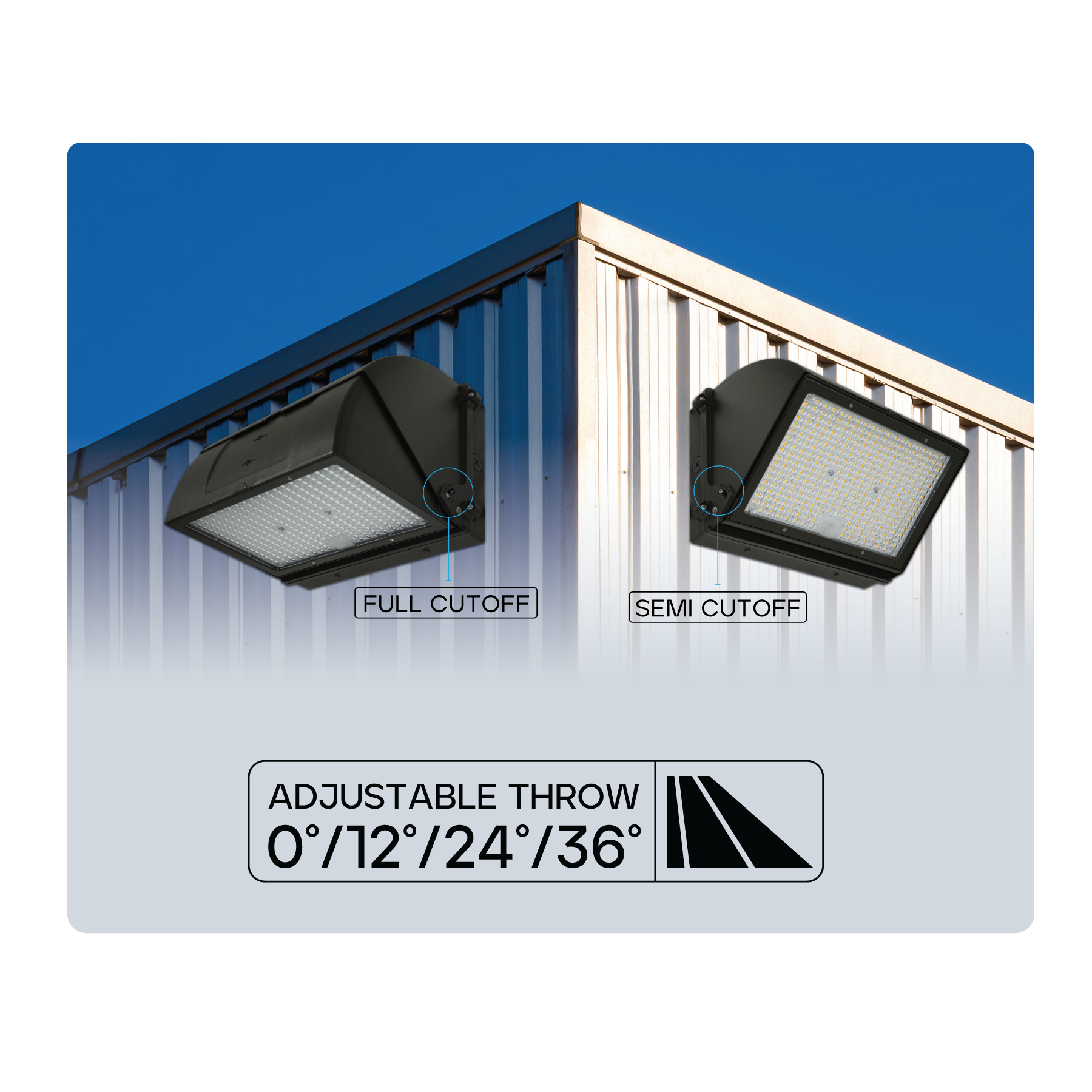

  • Beam Angle 0º/12º/24º/36º - ADJUSTABLE
  • CRI 80

ELECTRICAL

  • Power (Wattage) 120/140/160
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $19.27
  • Dimmable 0-10V
  • Power Factor 0.9
  • Frequency 50/60Hz
  • Lumen Efficacy 150
  • Operating Temp:
    • Min -40°
    • Max 122°

PACKAGING

  • UPC Barcode 732388933761
  • Master BarCode 10732388933768
  • Master Carton Dimensions:
    • Length 15.28"
    • Width 10.75"
    • Height 10.12"
  • Case Size 1

FEATURES

    80 LIFE HR 50000

CERTIFICATIONS
