LR41372

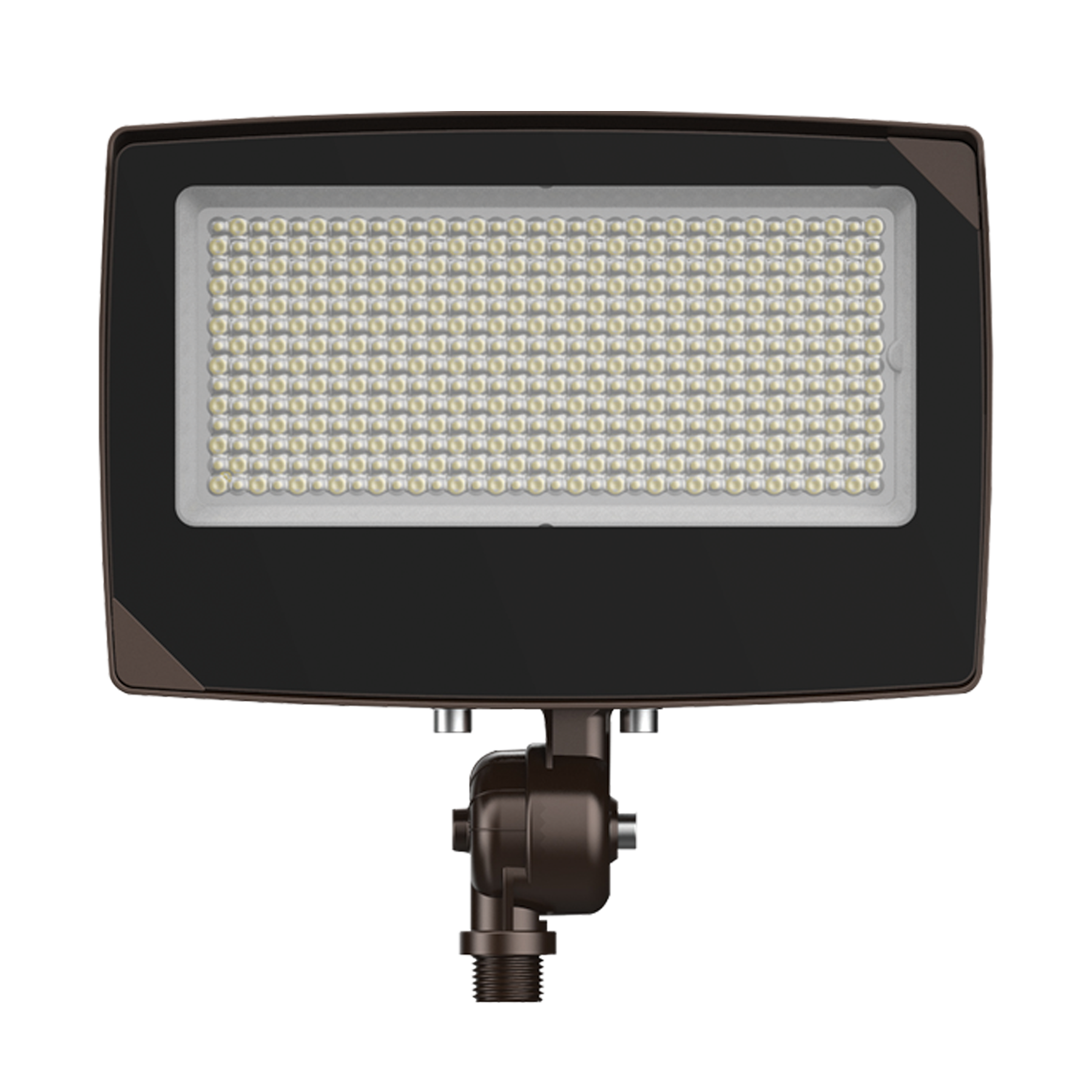

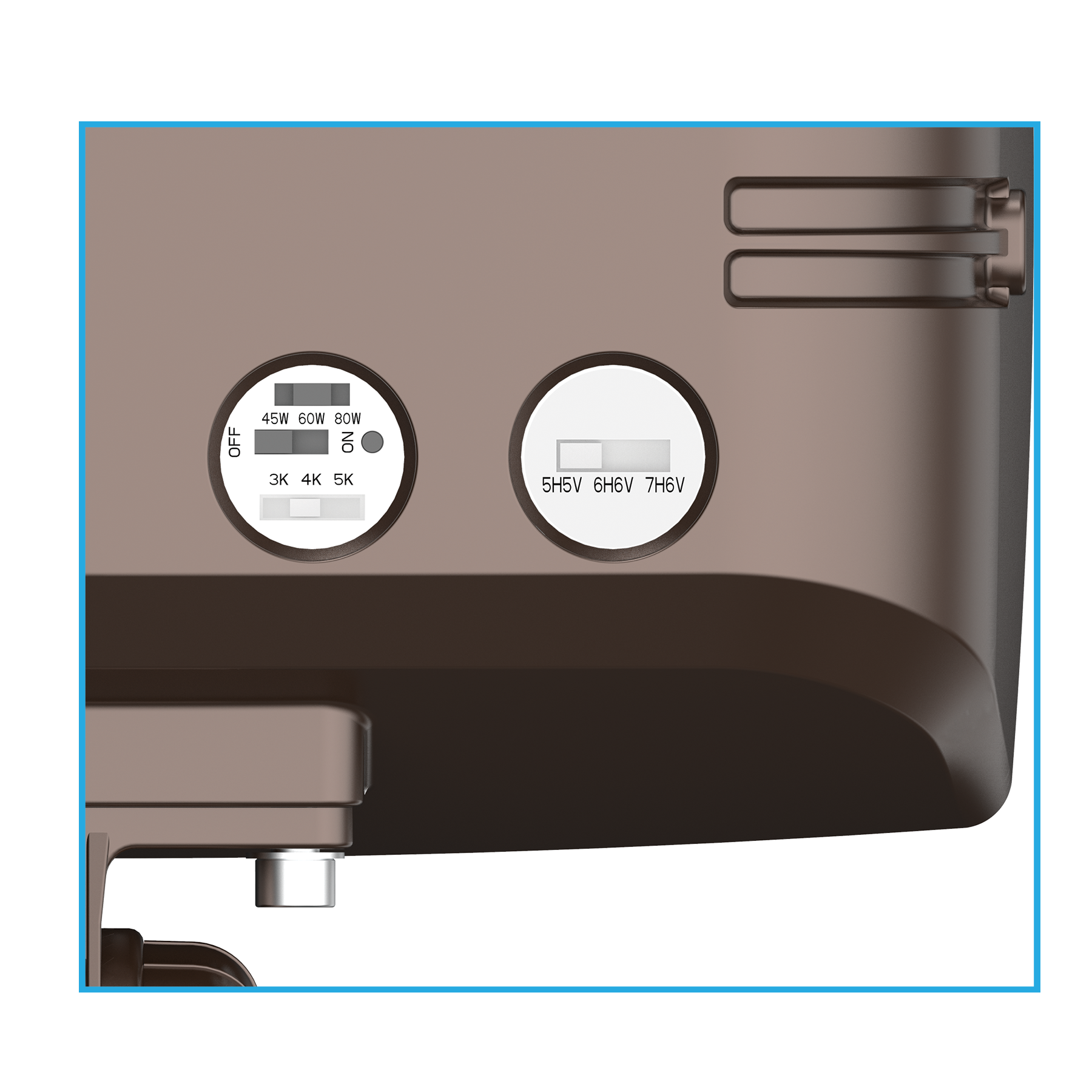

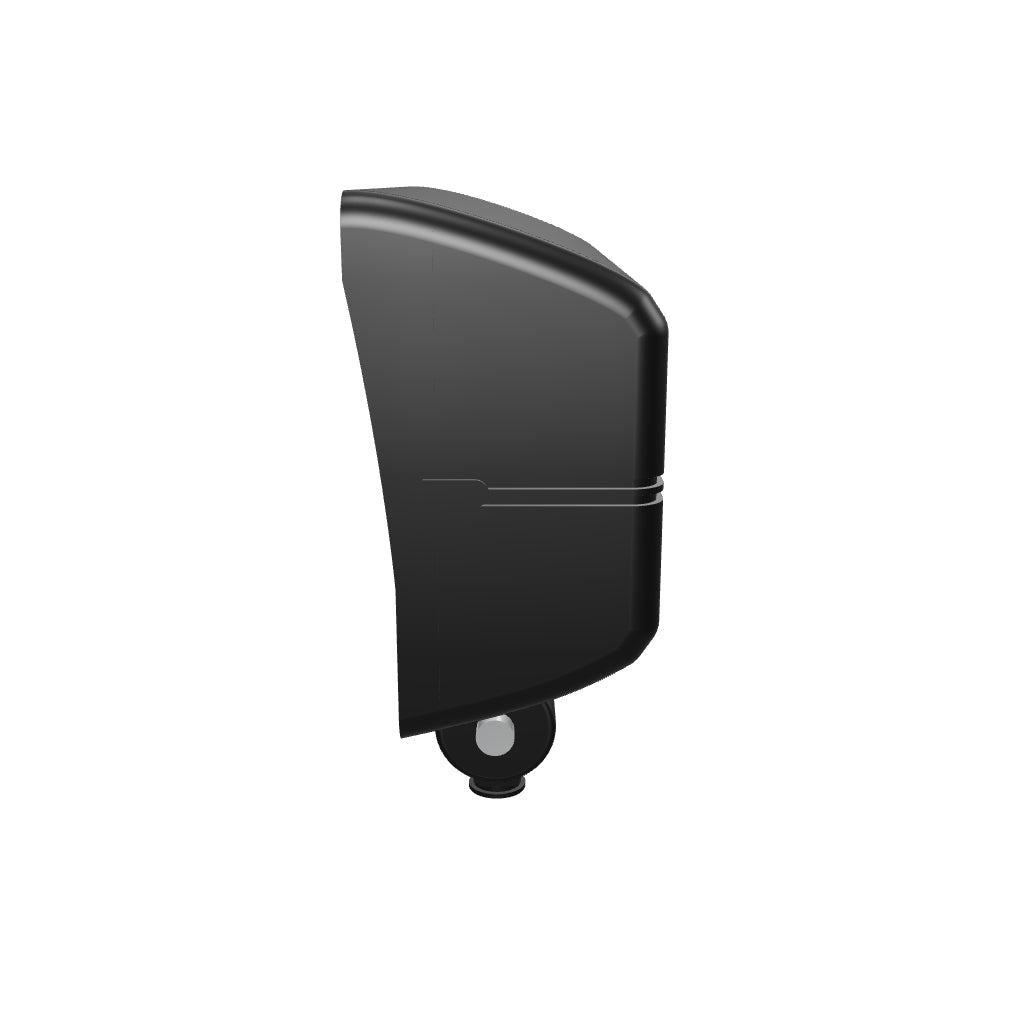

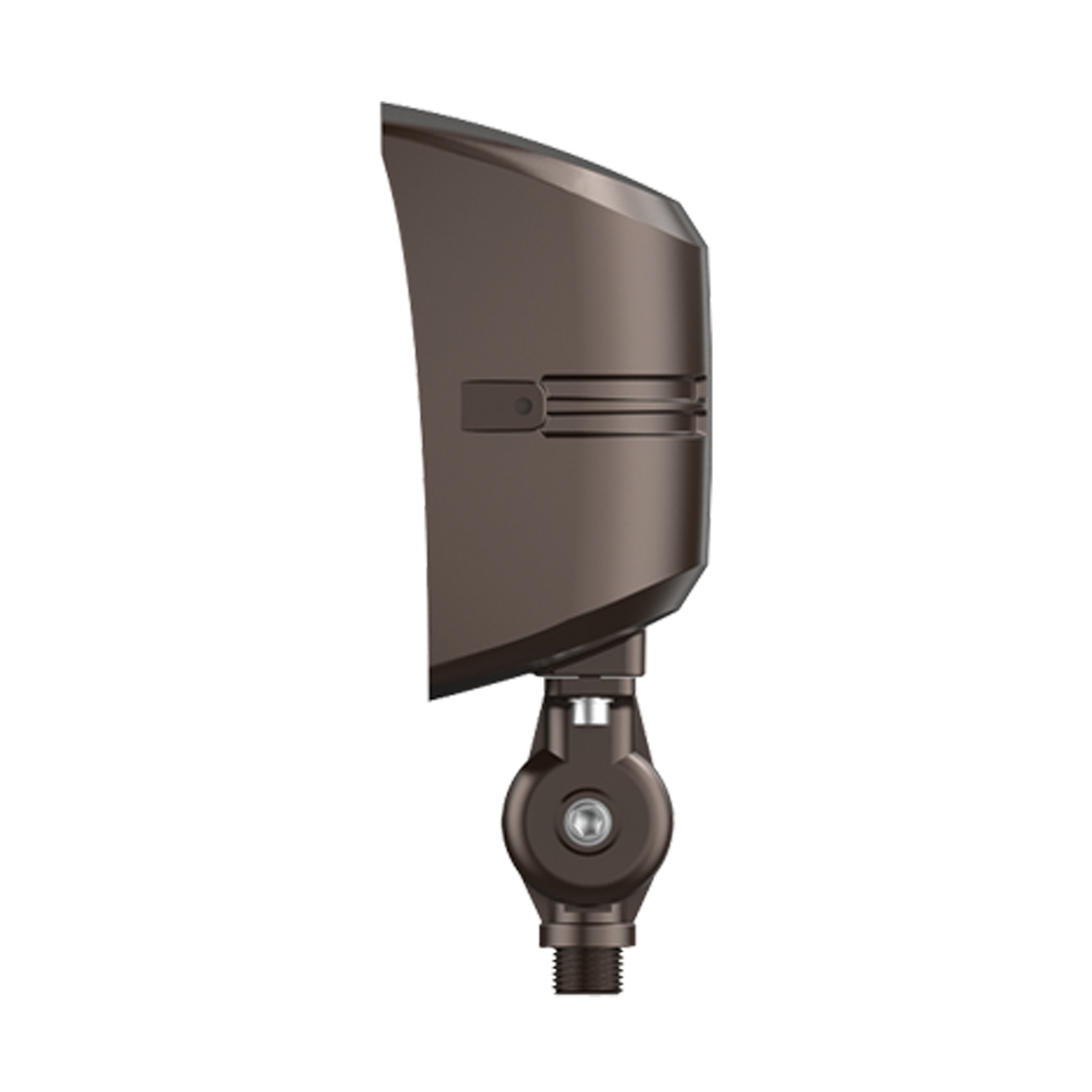

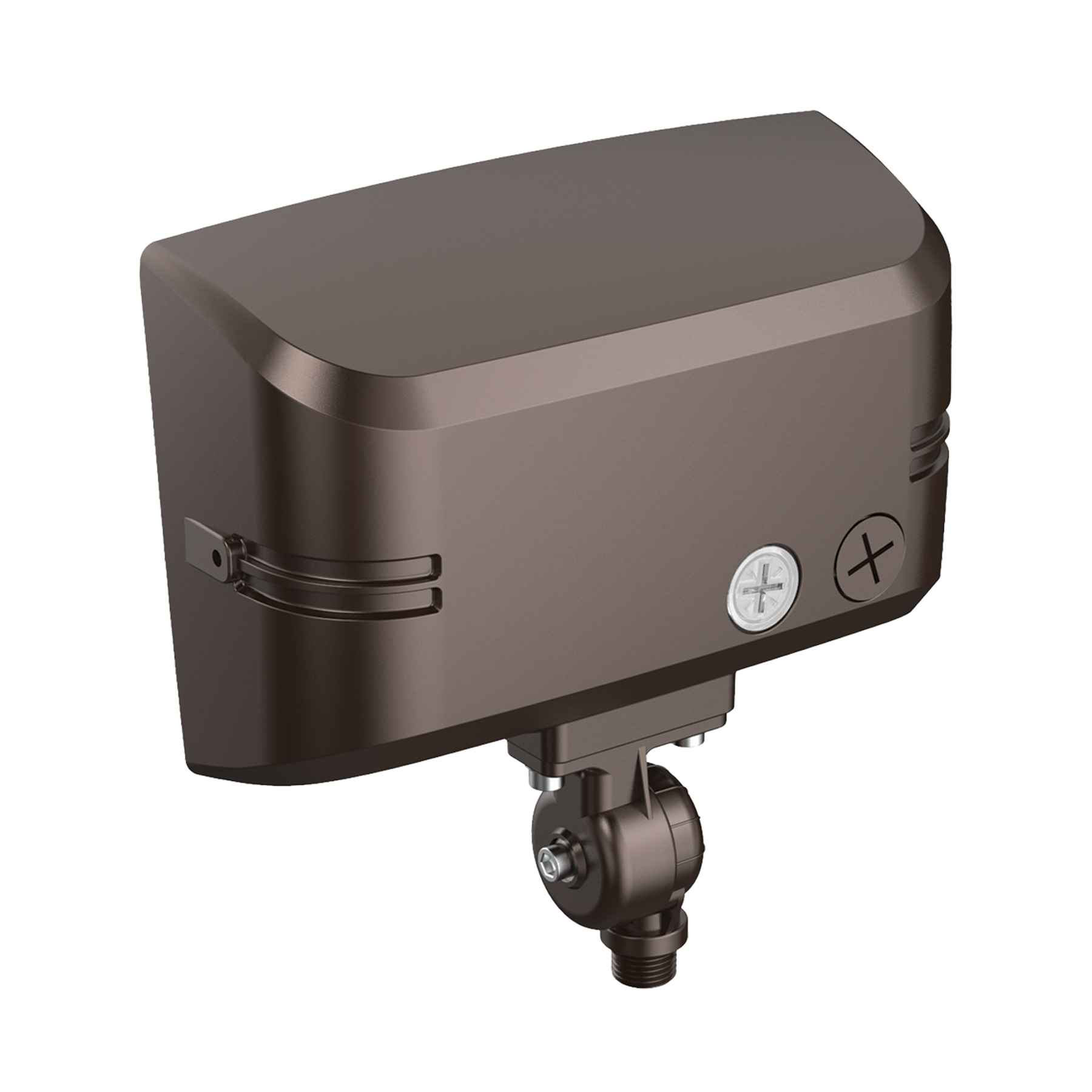

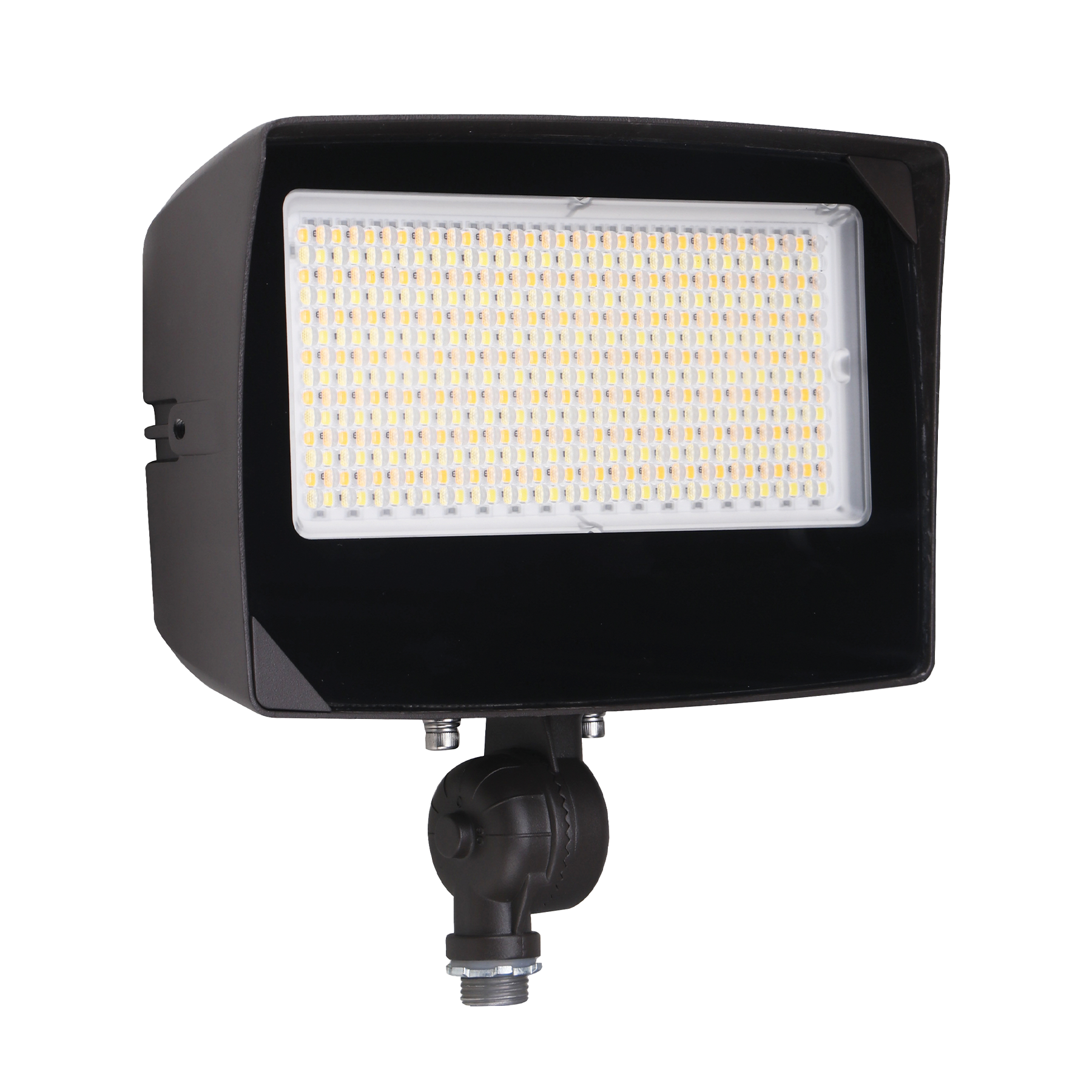

80W UNIVERSAL FLOOD LIGHT KNUCKLE + TRUNNION MOUNT - 3CCT/3 WATT/3 BEAM ANGLE SELECTABLE
LEDXFL80/3CCT/3WO/3BA/UNV/D/PC/KNU/TRN/BZ
SPECIFICATIONS
- Item numberLR41372
- Item description
LEDXFL80/3CCT/3WO/3BA/UNV/D/PC/KNU/TRN/BZ
- Shape FLOOD LIGHT

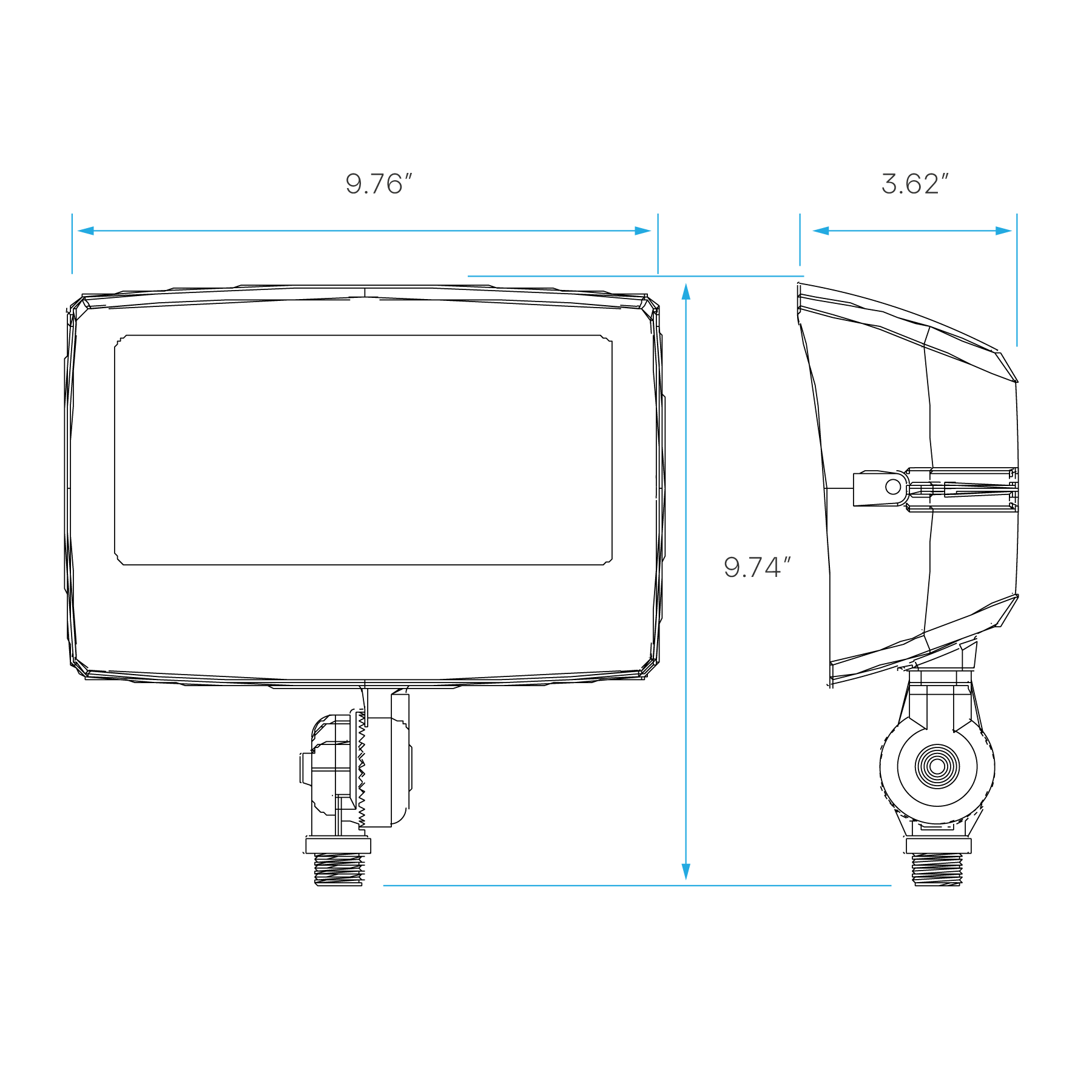

- Dimensions
- Length 9.76"
- Width 9.74"
- Depth 3.62"
- Finish BRONZE

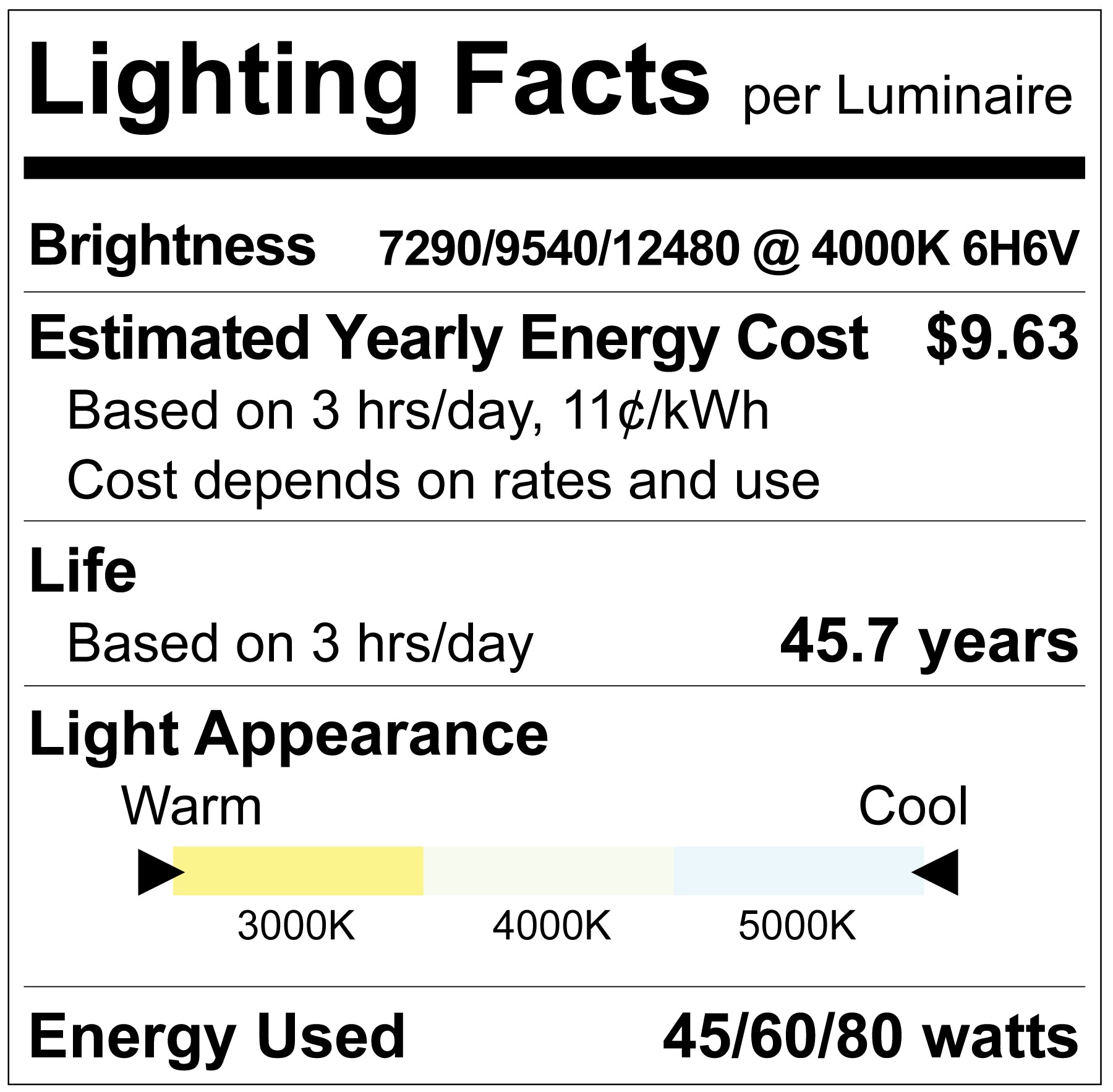

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 3000K/4000K/5000K
- Lumen 7290/9540/12480 @ 4000K 6H6V
- Beam Angle 135*125/120*120/90*90
- CRI 80
ELECTRICAL
- Power (Wattage) 45/60/80
- Input Volts 120-277V
- Rated Lifetime 50000
- Yearly Cost $9.63
- Dimmable 0-10V
- Power Factor 0.9
- Frequency 50/60Hz
- Lumen Efficacy 130/133/136
- Operating Temp:
- Min -40Ā°
- Max 122Ā°
PACKAGING
- UPC Barcode 732388949366
- Master BarCode 10732388949363
- Master Carton Dimensions:
- Length 26.18"
- Width 12.91"
- Height 13.39"
- Case Size 6
