LR42648

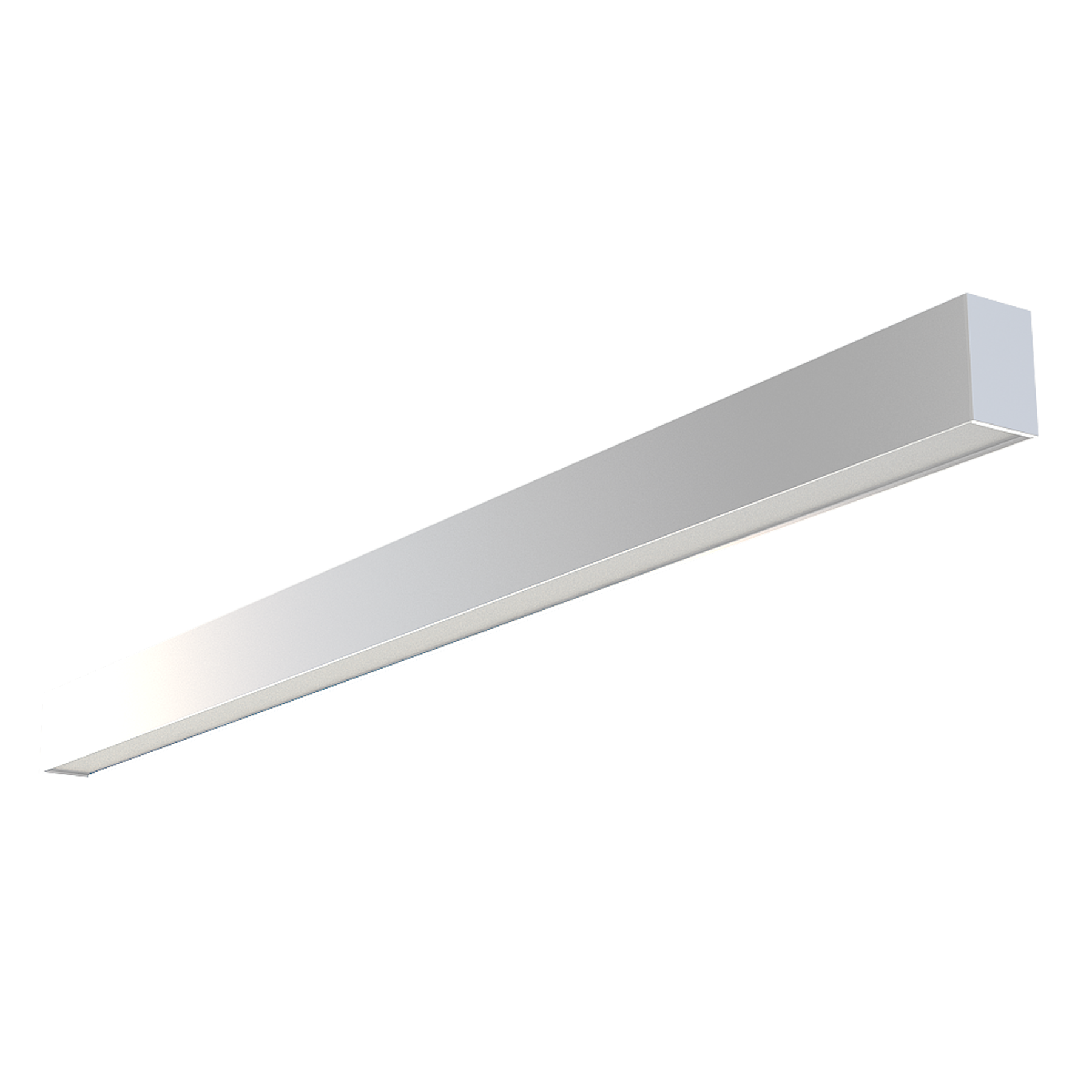

3' ARCHITECTURAL LINKABLE LINEAR 3 CCT/3 WATTAGE/UP-DOWN SELECTABLE - WHITE

ARCHL36/3CCT/3WO/WT/UPDN

3&
3&
3&
3&
3&
3&
3&
3&
3D viewer 3&
3&
3&
3&
3&

LR42648

3' ARCHITECTURAL LINKABLE LINEAR 3 CCT/3 WATTAGE/UP-DOWN SELECTABLE - WHITE

$0.00
/

ARCHL36/3CCT/3WO/WT/UPDN

  • CCT 3500K/4000K/5000K
  • Lumen 2500/3750/5000
  • WATT 20/30/40
  • Size3'

SPECIFICATIONS

  • Item numberLR42648
  • Item description

    ARCHL36/3CCT/3WO/WT/UPDN

  • Size3'
  • Shape ARCHITECTURAL LINEAR

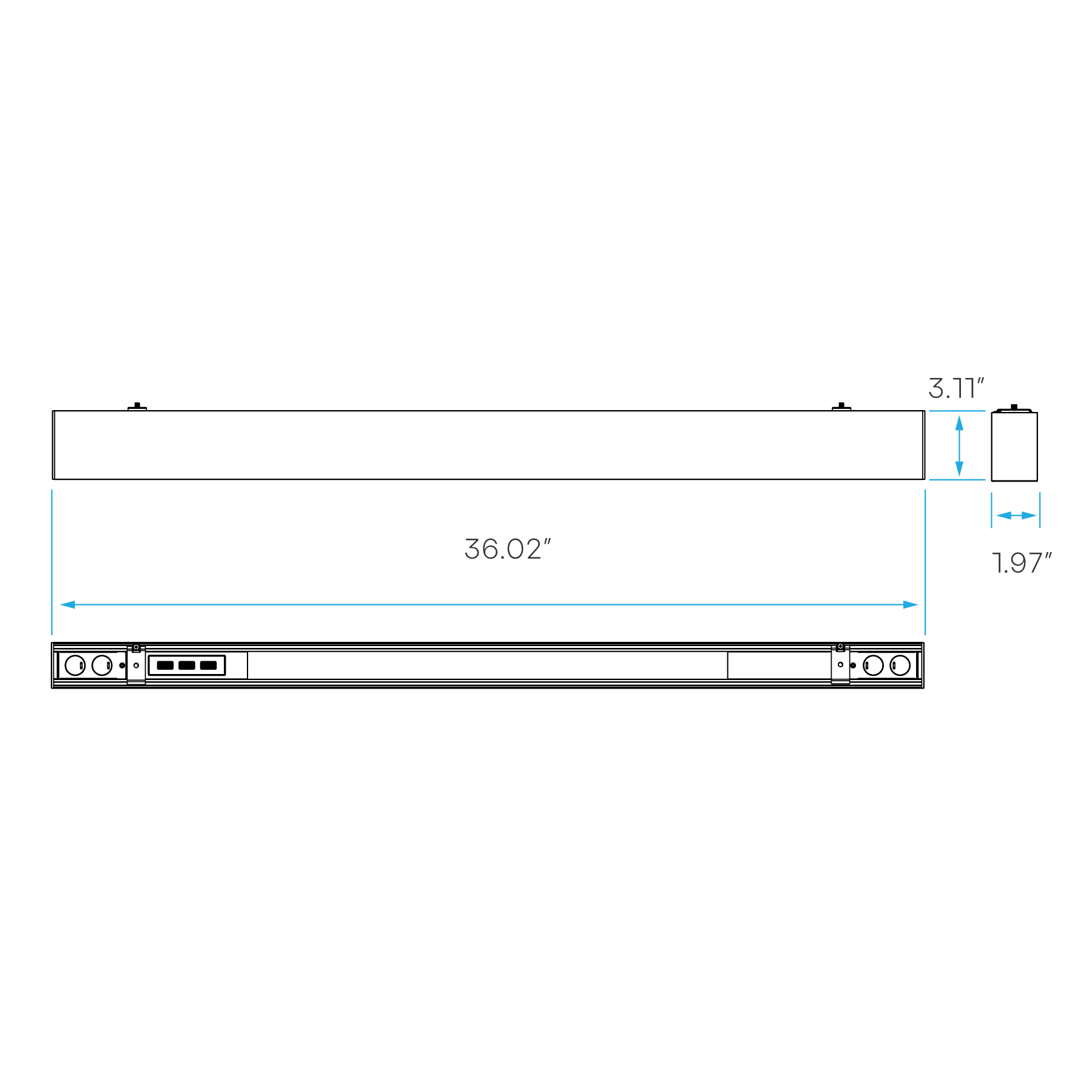

  • Dimensions
    • Length 36.02"
    • Width 1.97"
    • Height 3.11"
  • Finish WHITE
  • MOL 36.02"

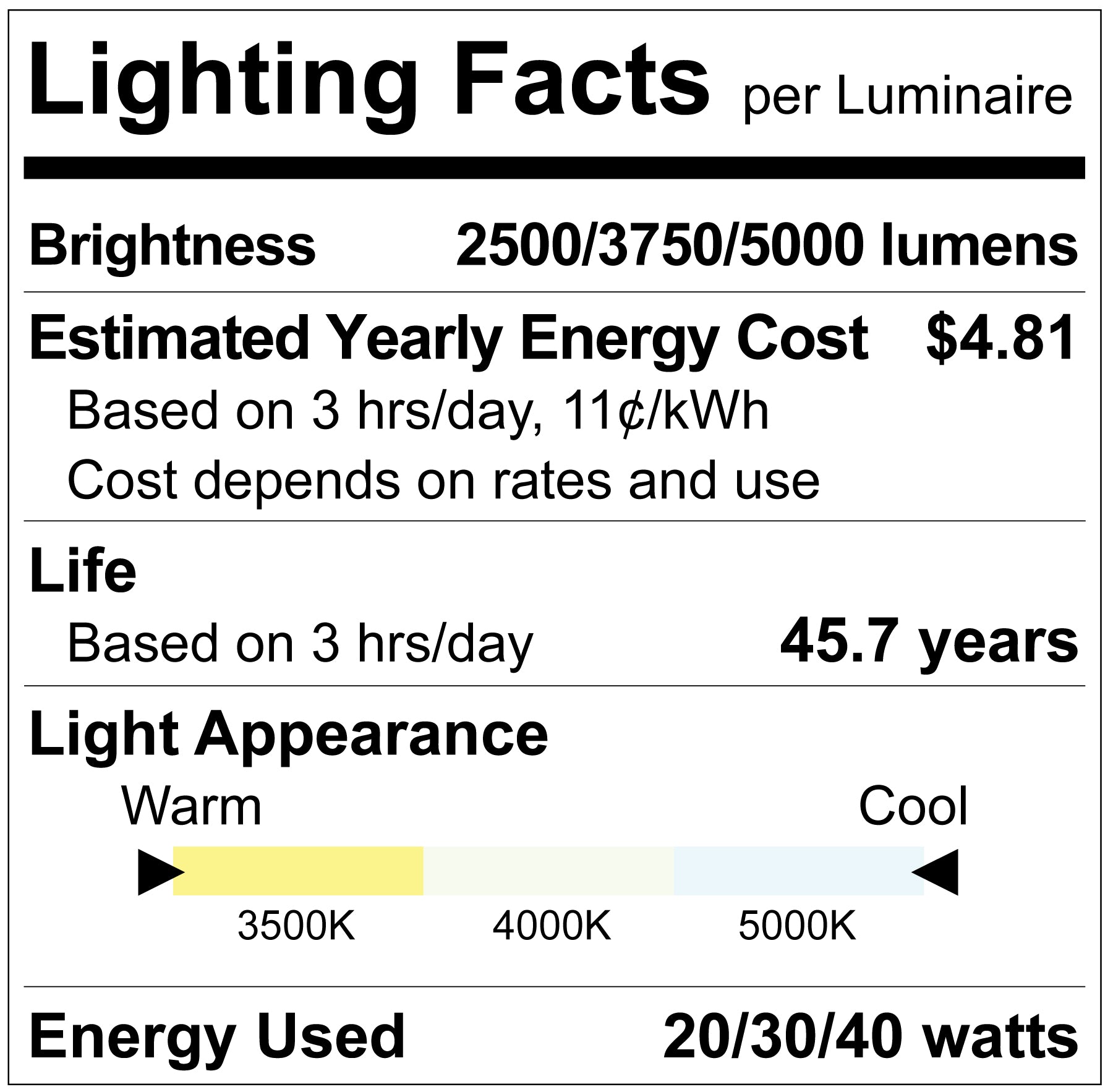

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3500K/4000K/5000K
  • Lumen 2500/3750/5000
  • Beam Angle 120Āŗ
  • CRI 80

ELECTRICAL

  • Power (Wattage) 20/30/40
  • Input Volts 120-277V
  • Rated Lifetime 50000
  • Yearly Cost $4.81
  • Dimmable 0-10V
  • Power Factor 0.9
  • Lumen Efficacy 125
  • Operating Temp:
    • Min -4Āŗ
    • Max 113Āŗ

PACKAGING

  • UPC Barcode 732388968961
  • Master BarCode 10732388968968
  • Master Carton Dimensions:
    • Length 44.29
    • Width 17.48"
    • Height 14.17"
  • Case Size 12

FEATURES

    80 LIFE HR 50000
