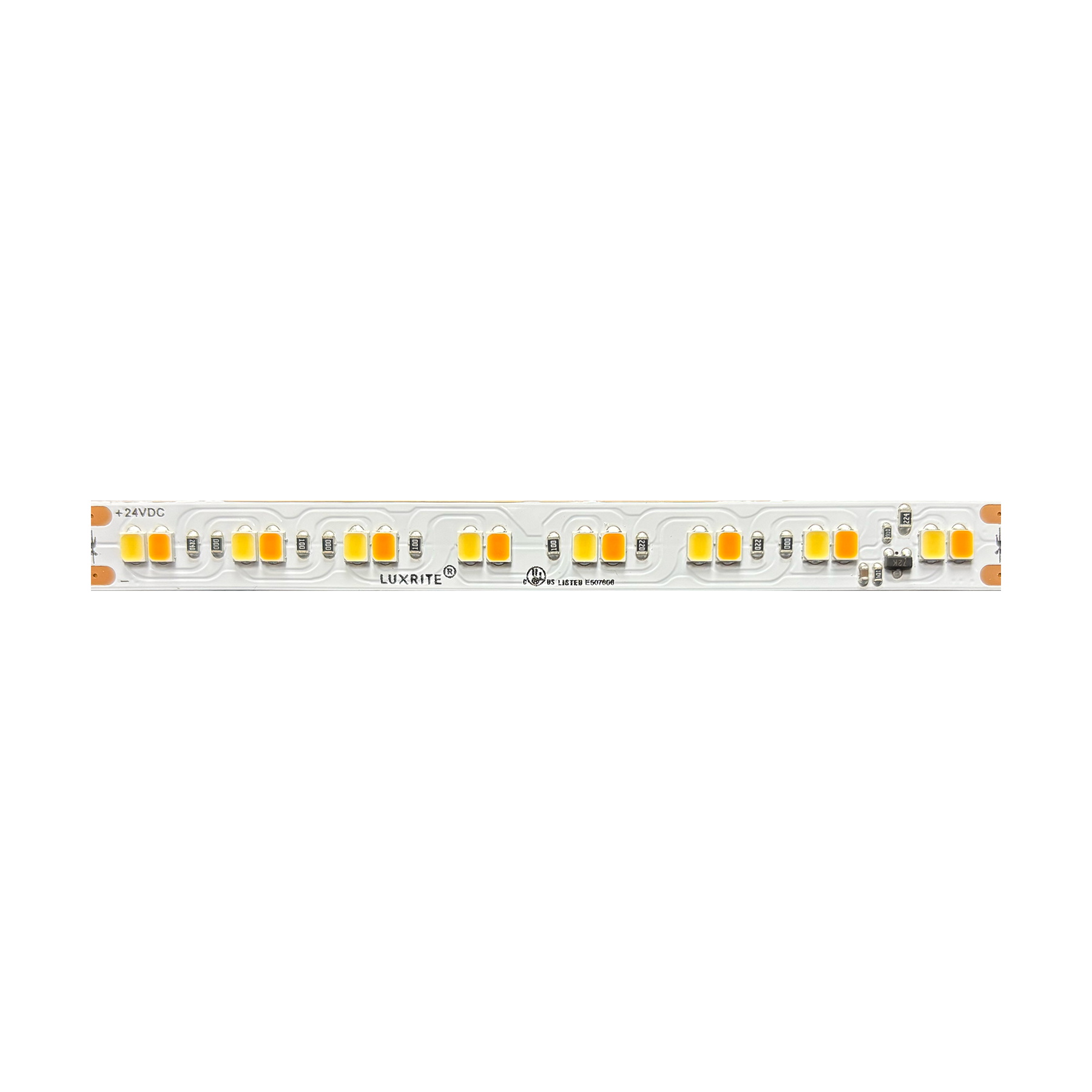

LR44208

4W/FT 90CRI IP20 1800~3000K DIM TO WARM

LEDTL/2835/160/14.4/930-18DTW/IP20/24V/5M

LR44208

4W/FT 90CRI IP20 1800~3000K DIM TO WARM

$0.00
/

LEDTL/2835/160/14.4/930-18DTW/IP20/24V/5M

  • W/FT 4
  • LM/FT 500
  • VOLT24V

SPECIFICATIONS

  • Item numberLR44208
  • Item description

    LEDTL/2835/160/14.4/930-18DTW/IP20/24V/5M

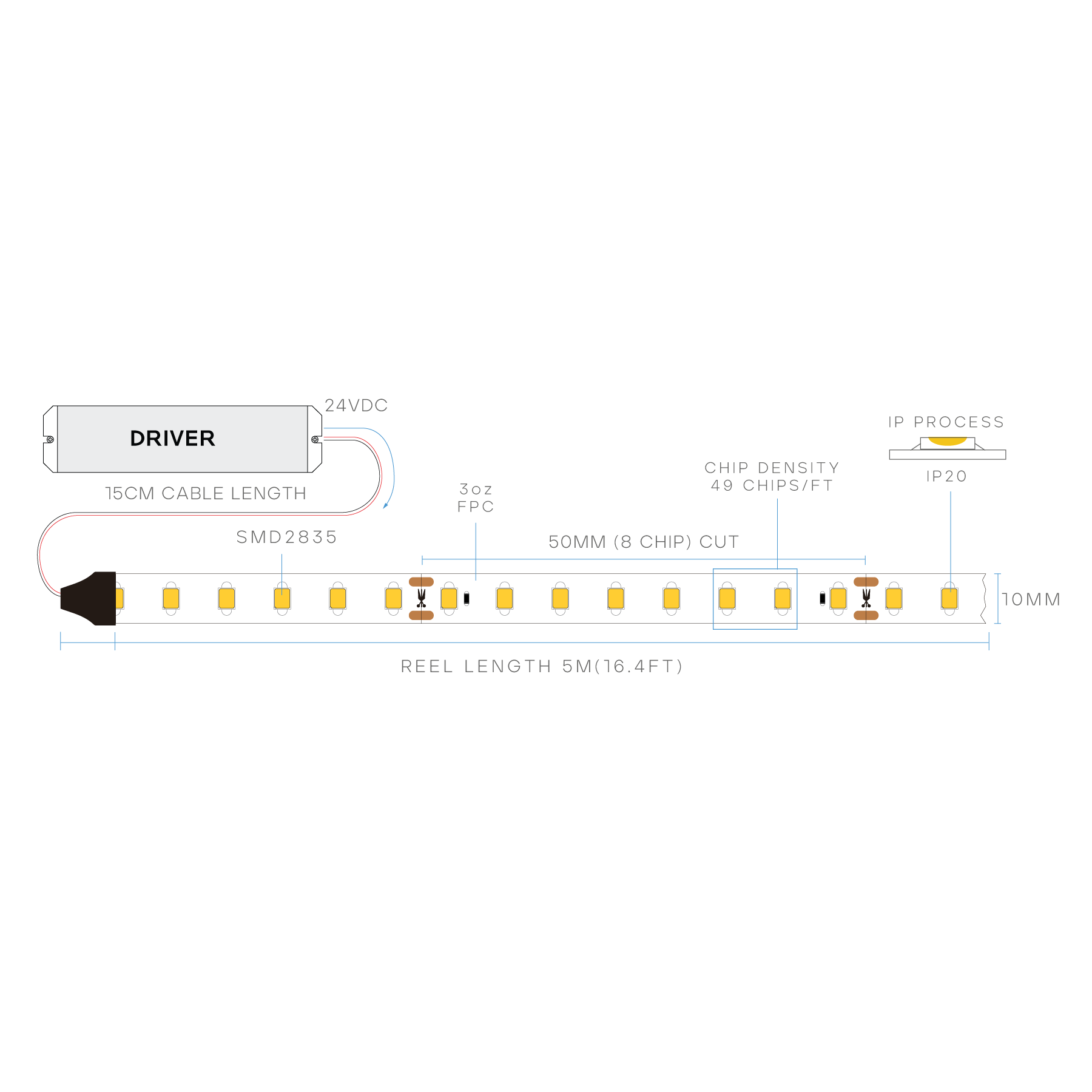

  • Dimensions
    • Chip Group 16
    • Width 10mm
    • Cut Size 100MM

Wattage

  • Chip Watt 0.2W
  • W/FT 4
  • W/MT 14.4

Lumen

  • LM/FT 500
  • LM/M 1640
  • LM/W 105

PHOTOMETRIC

  • Beam Angle 120°
  • CRI 90

ELECTRICAL

  • Max Run 16.4ft
  • Volt 24V

DENSITY

  • CHIP/FT 48
  • CHIP/M 160

FEATURES

MISC

  • Copper Weight 3oz
  • Adhesive 9448A 3M
  • Cable Length 15cm
  • Case Size 50 Rolls
  • UPC 732388934065
  • Master BarCode 10732388934062
