LR44902

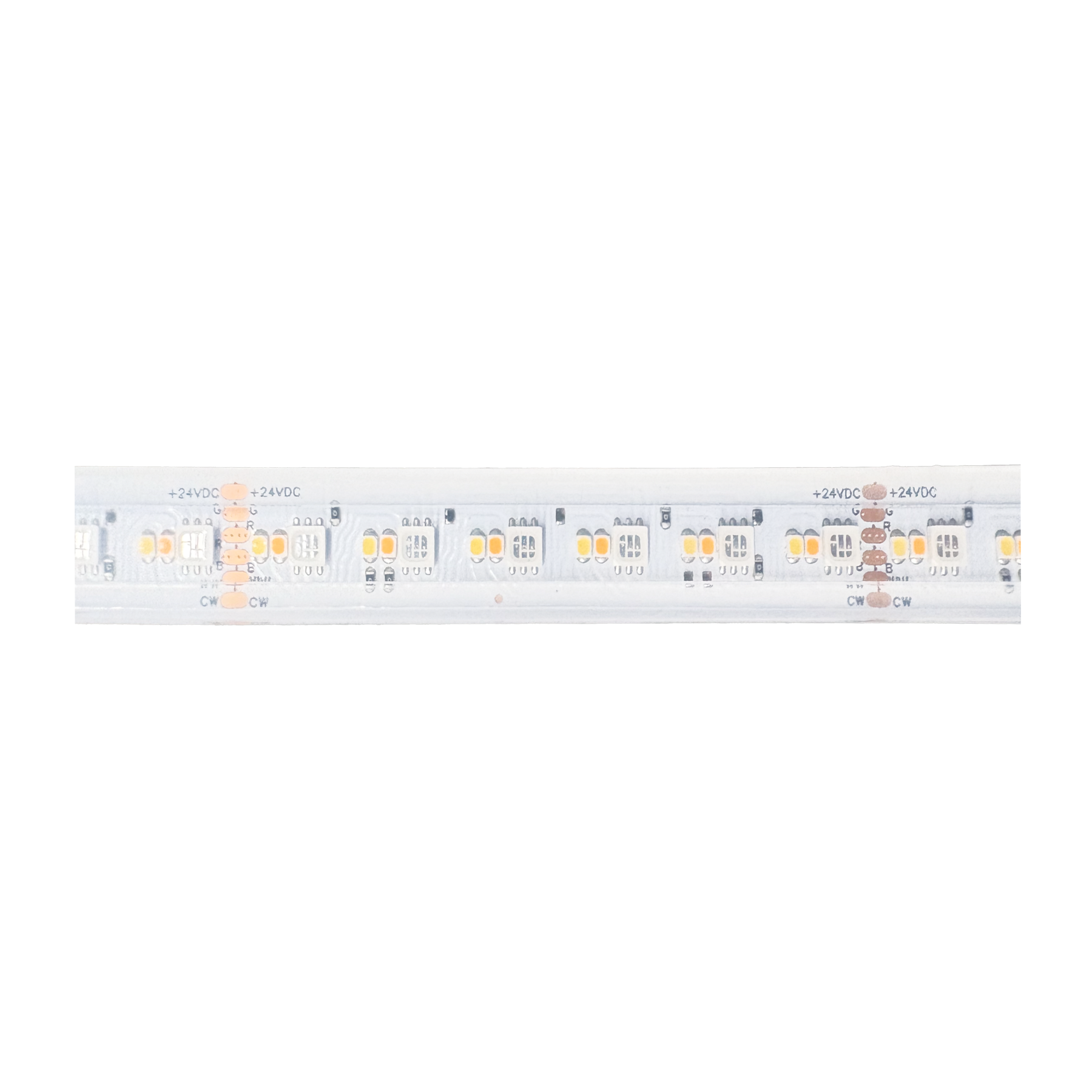

7W/FT 90CRI RGBWW IP67 WATERPROOF - LONG RUN

LEDTL/3535/CCU/96/23/RGBWW/IP67/24V/15M

LR44902

7W/FT 90CRI RGBWW IP67 WATERPROOF - LONG RUN

$0.00
/

LEDTL/3535/CCU/96/23/RGBWW/IP67/24V/15M

  • W/FT 7
  • LM/FT 185
  • CCT RGB+WW 2700-6500K
  • VOLT24V

SPECIFICATIONS

  • Item numberLR44902
  • Item description

    LEDTL/3535/CCU/96/23/RGBWW/IP67/24V/15M

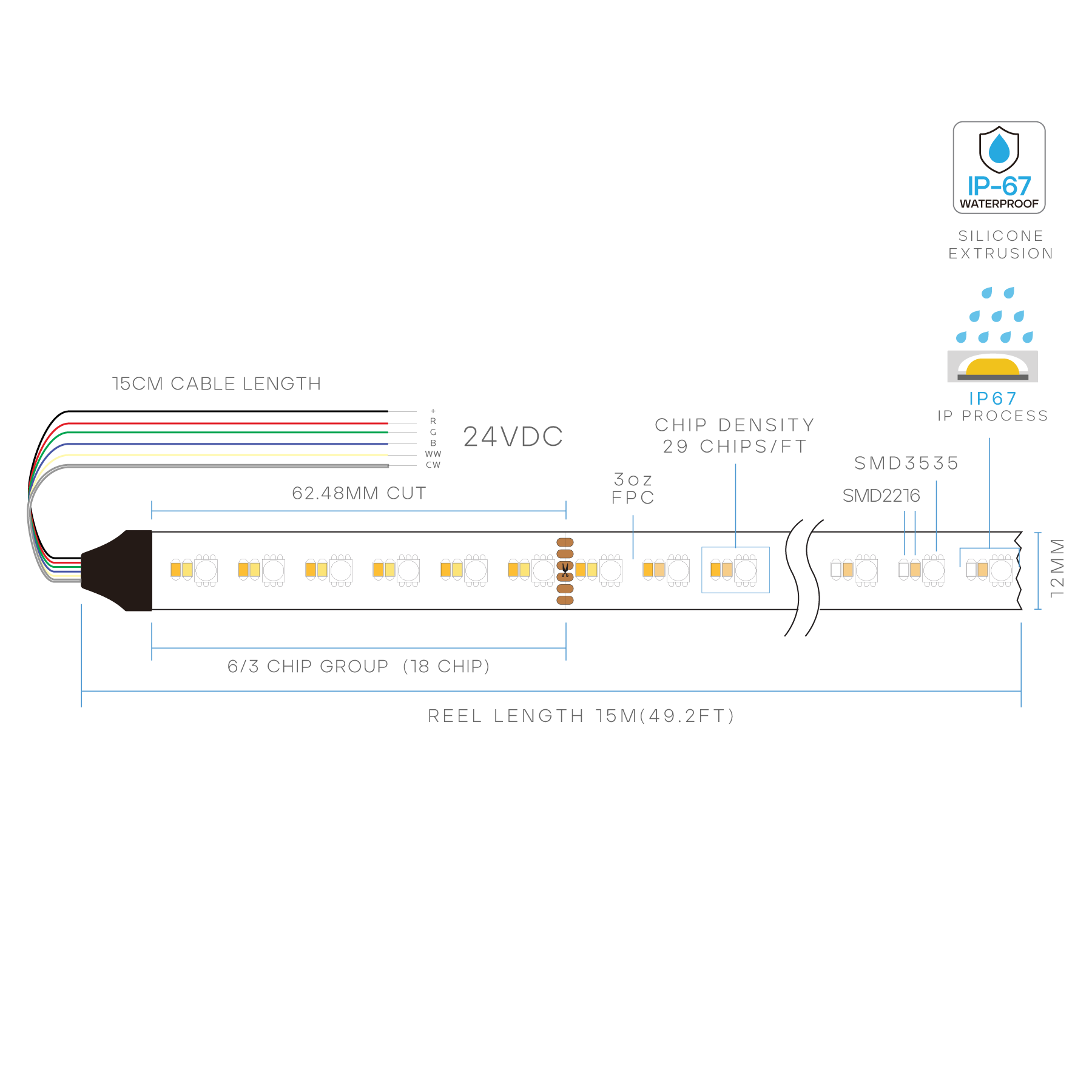

  • Dimensions
    • Chip Group 6
    • Width 12mm
    • Cut Size 62.48MM

Wattage

  • Chip Watt 1W
  • W/FT 7
  • W/MT 23

Lumen

  • LM/FT 185
  • LM/M 600
  • LM/W 25

PHOTOMETRIC

  • Color (CCT) RGB+WW 2700-6500K
  • Beam Angle 120°
  • CRI 90

ELECTRICAL

  • Max Run 49.2ft
  • Volt 24V
  • Current MA 958mA

DENSITY

  • CHIP/FT 29
  • CHIP/M 96

FEATURES

MISC

  • Copper Weight 3oz
  • Adhesive 9448A 3M
  • Cable Length 15cm
  • Case Size 20 Rolls
  • UPC 608870509427
  • Master BarCode 10608870509424
