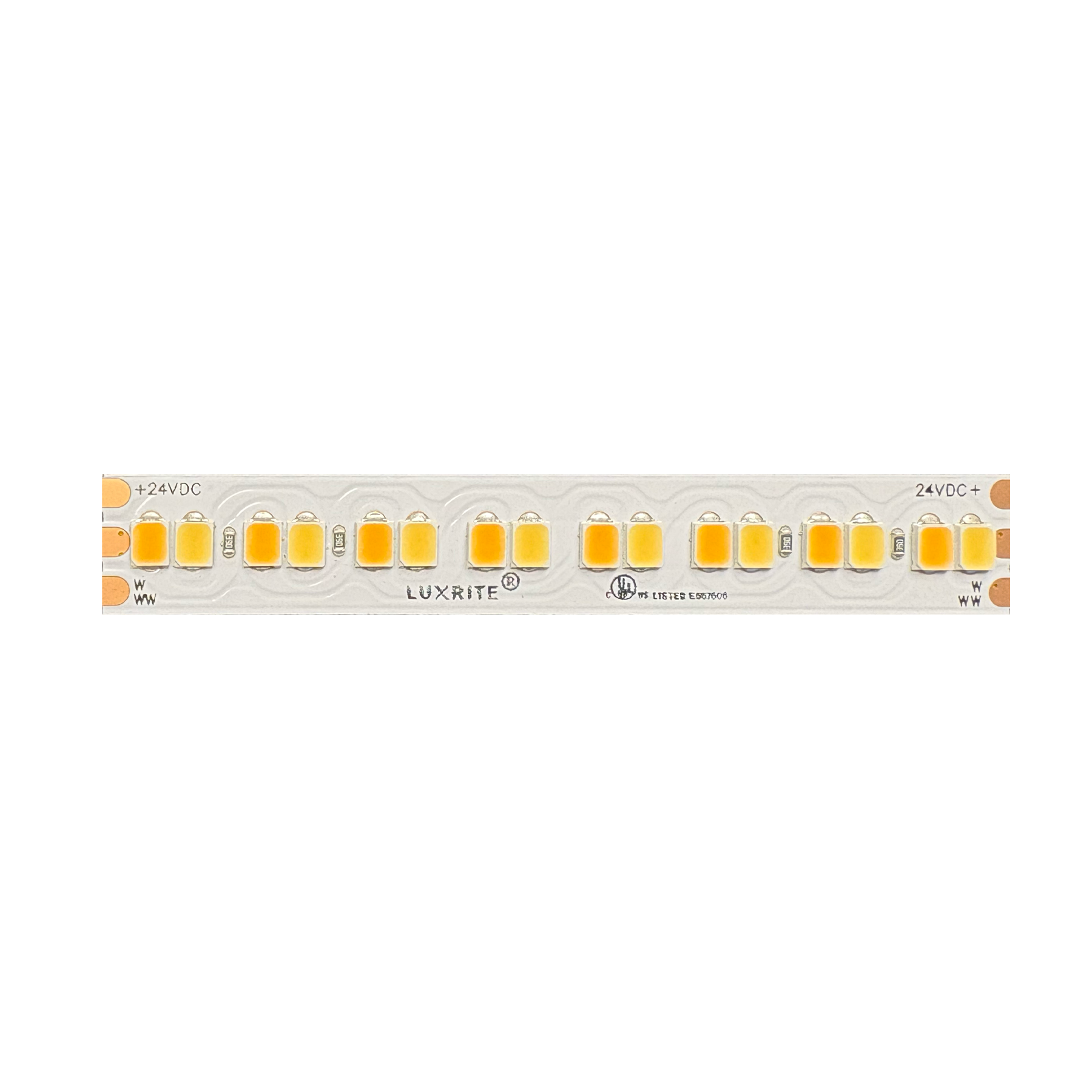

LR44905

7W/FT 90CRI IP20 2700~5000K CCT TUNABLE

LEDTL/2835/HD240/23/CCT/IP20/24V/5M

LR44905

7W/FT 90CRI IP20 2700~5000K CCT TUNABLE

$0.00
/

LEDTL/2835/HD240/23/CCT/IP20/24V/5M

  • W/FT 7
  • LM/FT 841
  • VOLT24V

SPECIFICATIONS

  • Item numberLR44905
  • Item description

    LEDTL/2835/HD240/23/CCT/IP20/24V/5M

  • Dimensions
    • Chip Group 8
    • Width 10mm
    • Cut Size 45.5mm

Wattage

  • Chip Watt 1W
  • W/FT 7
  • W/MT 23

Lumen

  • LM/FT 841
  • LM/M 2760
  • LM/W 120

PHOTOMETRIC

  • Beam Angle 120Ā°
  • CRI 90

ELECTRICAL

  • Max Run 16.4ft
  • Volt 24V

DENSITY

  • CHIP/FT 73
  • CHIP/M 240

FEATURES

MISC

  • Copper Weight 3oz
  • Adhesive 9448A 3M
  • Cable Length 15cm
  • Case Size 50 Rolls
  • UPC 732388935468
  • Master BarCode 10732388935465
