LR42340

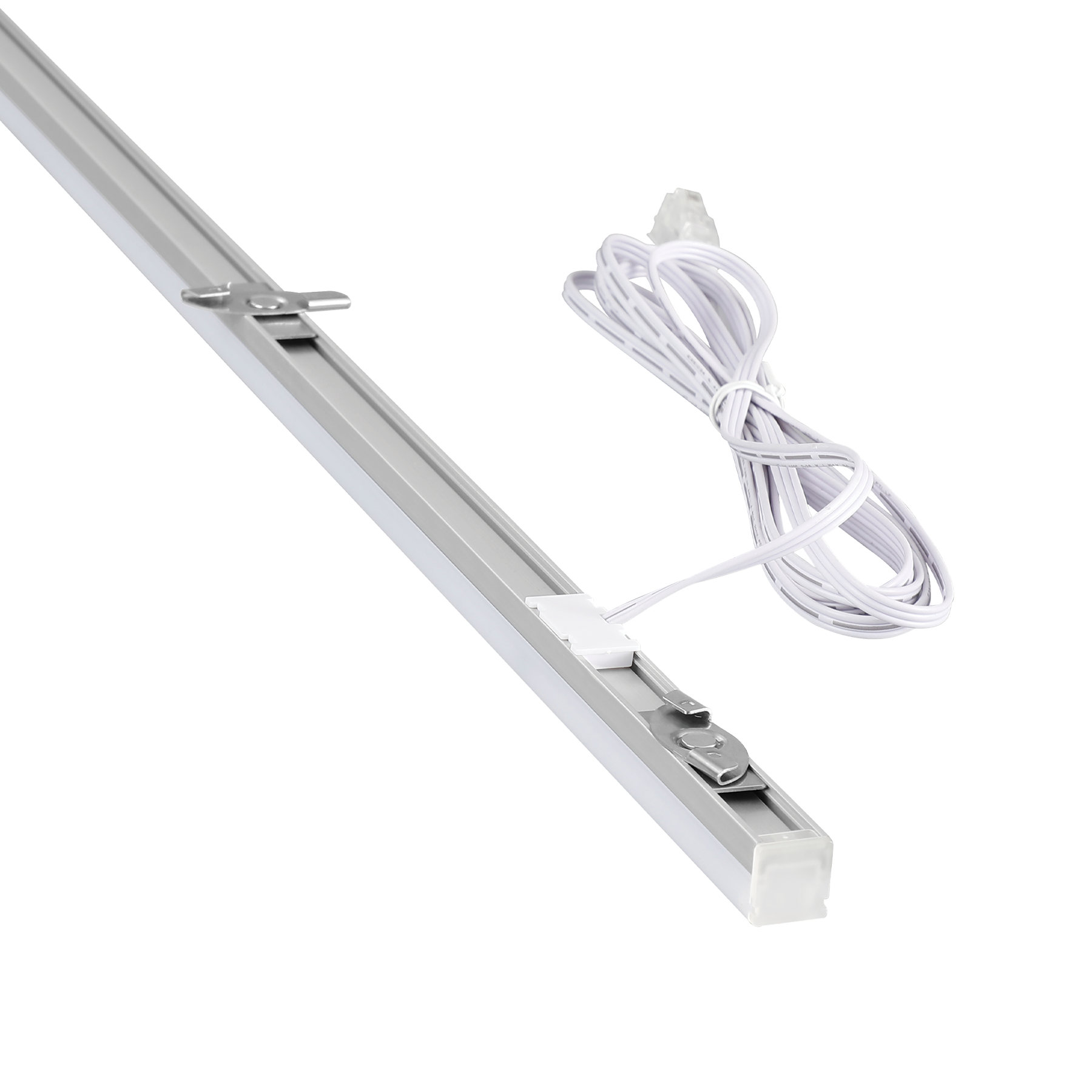

GRID SMART PRO 24" 9/16" - 5CCT SELECTABLE

LEDGS/SM/24/UNV/D/5CCT/916

LR42340

GRID SMART PRO 24" 9/16" - 5CCT SELECTABLE

$0.00
/

LEDGS/SM/24/UNV/D/5CCT/916

  • CCT 3000K/3500K/4000K/5000K/6500K
  • Lumen 1950
  • WATT 15
  • Size24"

SPECIFICATIONS

  • Item numberLR42340
  • Item description

    LEDGS/SM/24/UNV/D/5CCT/916

  • Size24"
  • Shape GRID SMART

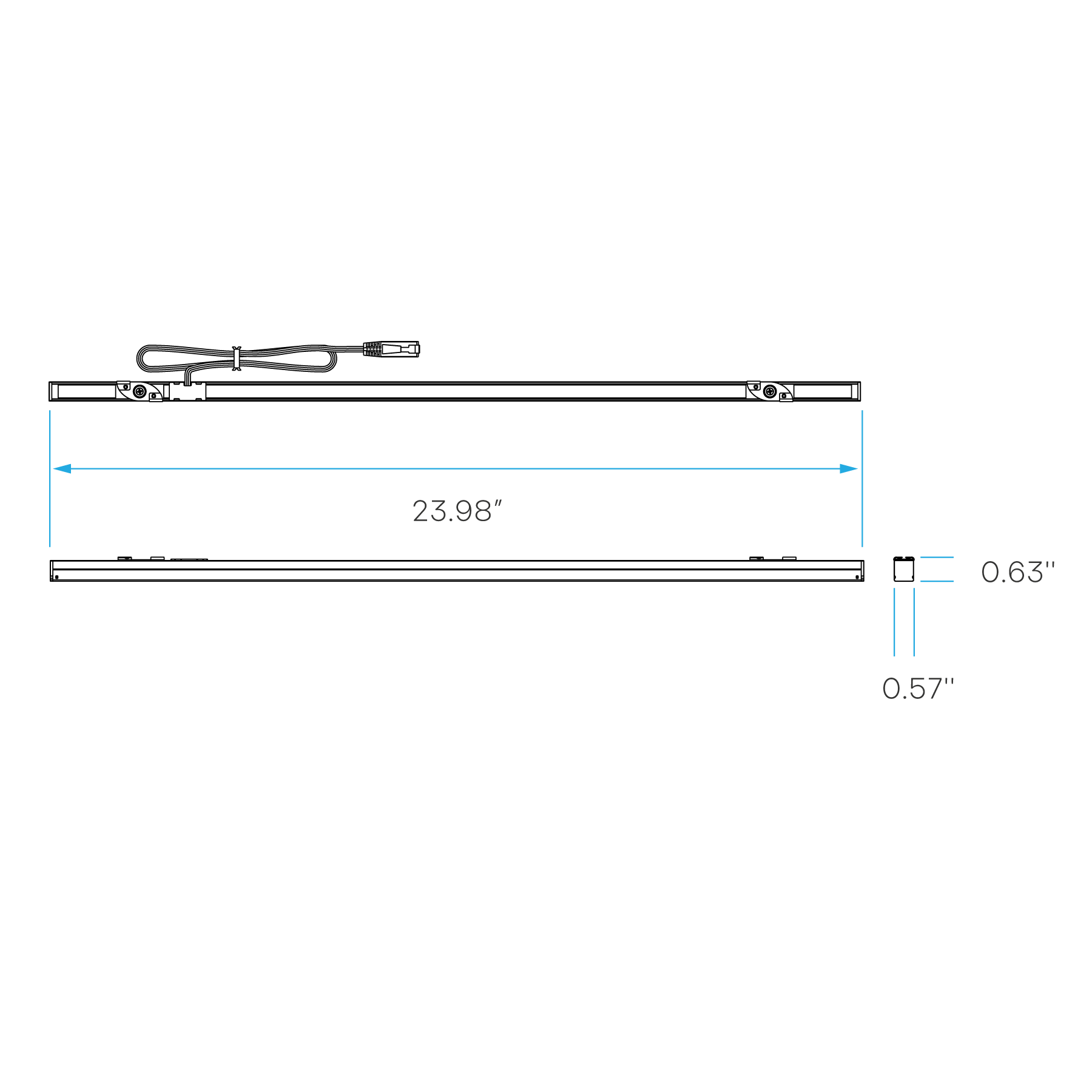

  • Dimensions
    • Length 23.98"
    • Width 0.57"
    • Depth 0.63"
  • Finish FROSTED WHITE
  • MOL 23.98"

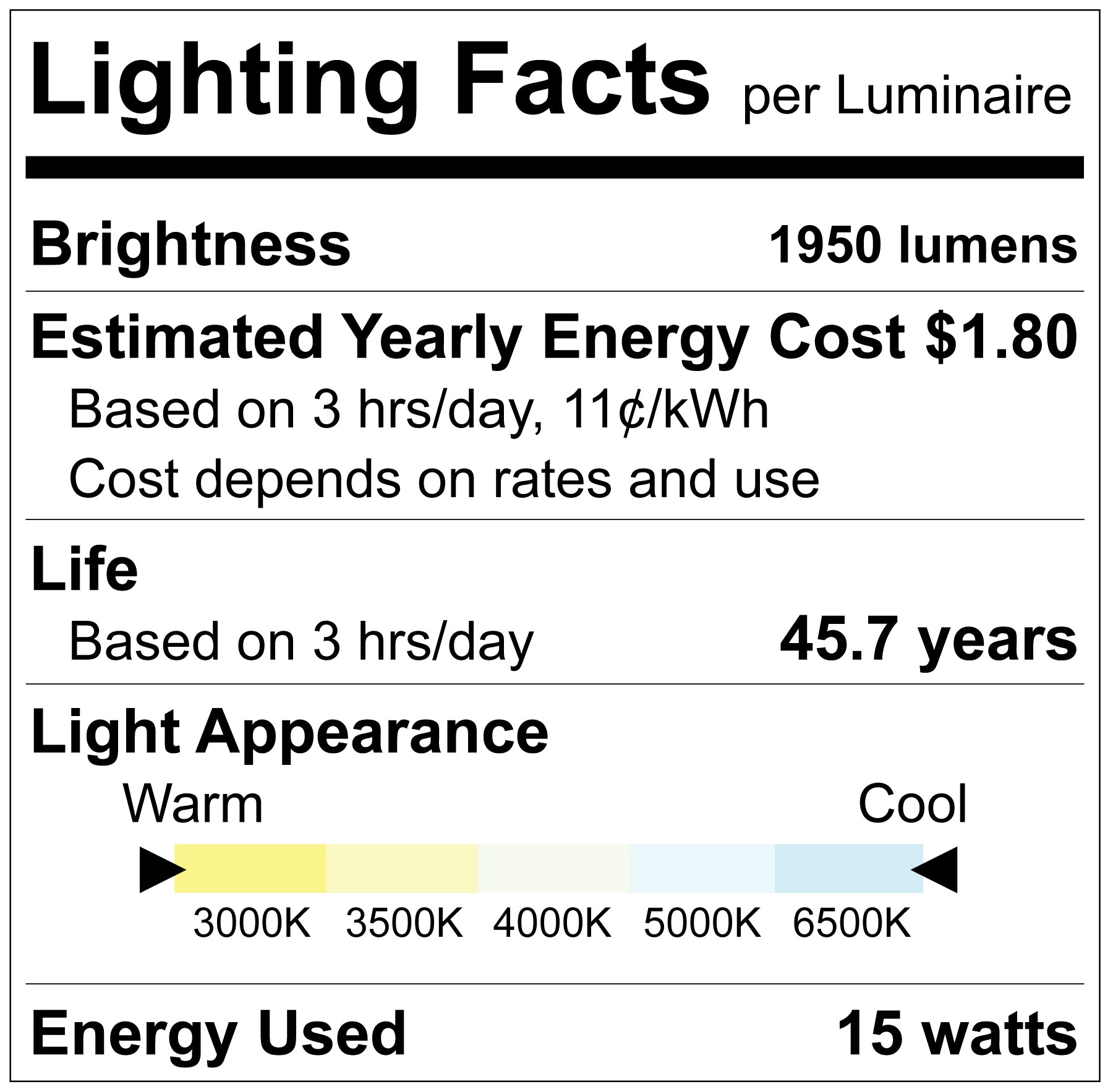

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3000K/3500K/4000K/5000K/6500K
  • Lumen 1950
  • Beam Angle 120Āŗ
  • CRI 80

ELECTRICAL

  • Power (Wattage) 15
  • Input Volts 100-277V
  • Rated Lifetime 50000
  • Yearly Cost $1.80
  • Dimmable 0-10V
  • Power Factor 0.9
  • Input Current 0.17A
  • Frequency 50/60Hz
  • Lumen Efficacy 130
  • Operating Temp:
    • Min -4Āŗ
    • Max 113Āŗ

PACKAGING

  • UPC Barcode 732388963461
  • Master BarCode 10732388963468
  • Master Carton Dimensions:
    • Length 25.4"
    • Width 7.1"
    • Height 10.5"
    • Weight 10.7lb
  • Case Size 32

FEATURES

    80 LIFE HR 50000

CERTIFICATIONS

DOCUMENTS

LUXIFLOW

Lighting Layout Software

Our dynamic software tool allows you to estimate the optimum illuminance level, number of luminairies, power density, and luminaire/pole spacing necessary for interior and exterior spaces. Itā€™s designed to help industry experts formulate and display predicted lighting performance.
