SPECIFICATIONS
- Item numberLR42342
- Item description
LEDGS/SM/48/UNV/D/5CCT/916
- Size48"
- Shape GRID SMART

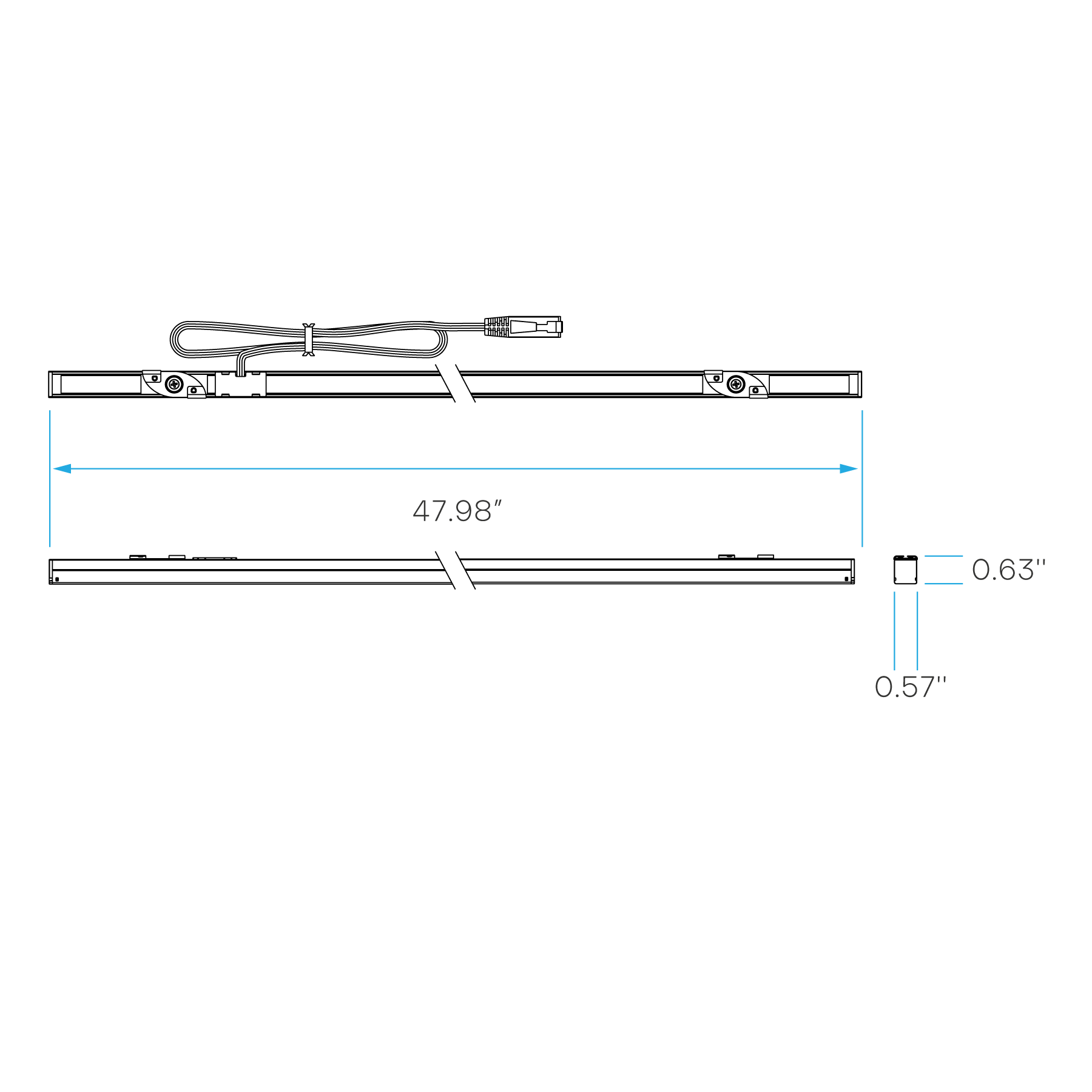

- Dimensions
- Length 47.98"
- Width 0.57"
- Depth 0.63"
- Finish FROSTED WHITE
- MOL 47.98"

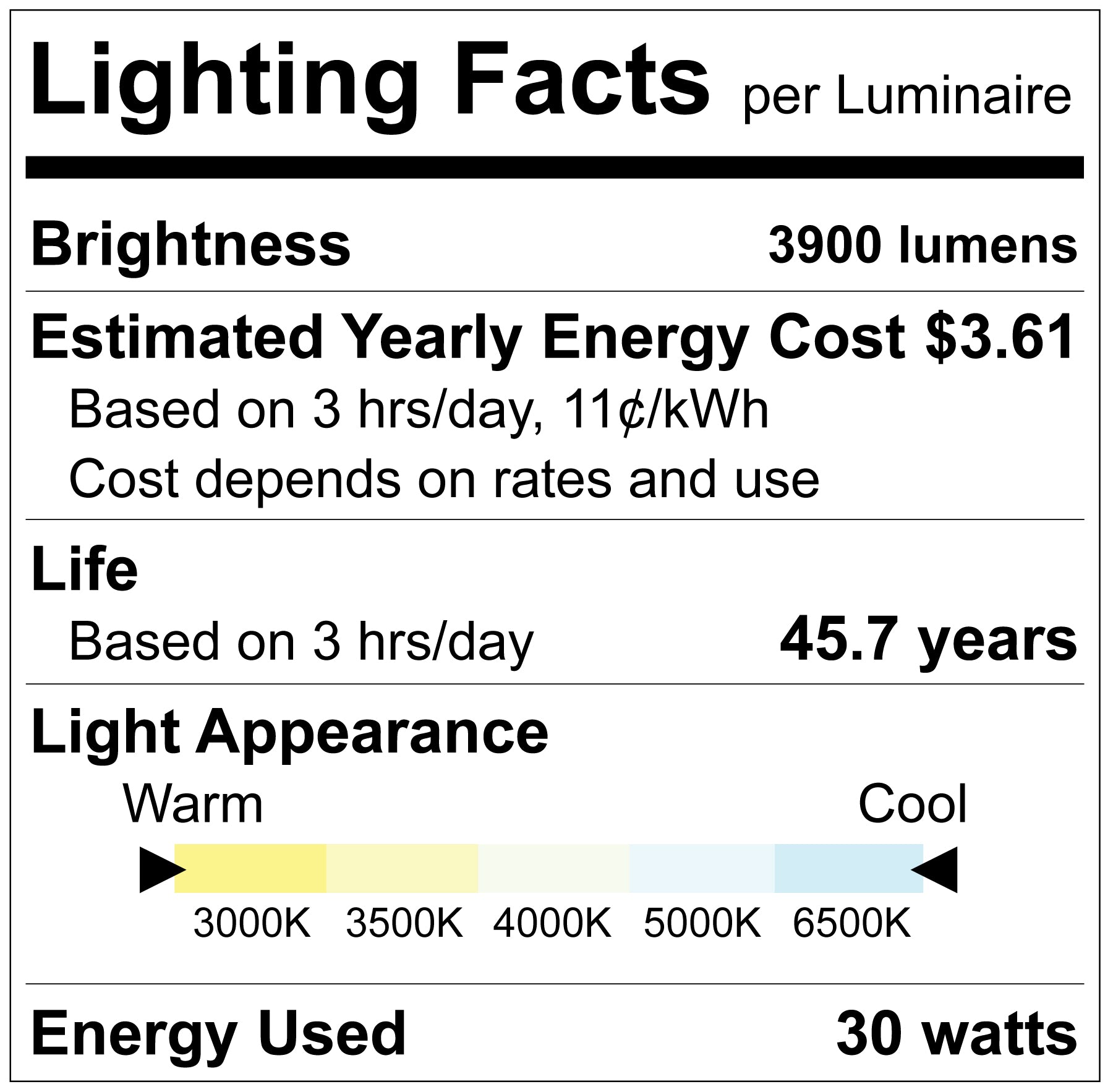

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 3000K/3500K/4000K/5000K/6500K
- Lumen 3900
- Beam Angle 120º
- CRI 80
ELECTRICAL
- Power (Wattage) 30
- Input Volts 100-277V
- Rated Lifetime 50000
- Yearly Cost $3.61
- Dimmable 0-10V
- Power Factor 0.9
- Input Current 0.33A
- Frequency 50/60Hz
- Lumen Efficacy 130
- Operating Temp:
- Min -4º
- Max 113º
PACKAGING
- UPC Barcode 732388963669
- Master BarCode 10732388963666
- Master Carton Dimensions:
- Length 49.4"
- Width 7.1"
- Height 10.5"
- Weight 18.3lb
- Case Size 32
