SPECIFICATIONS
- Item numberLR23496
- Item description
LED/MINI4/FIRE/5CCT/RD/WT/2
- Size4"
- Shape 4" FIRE RATED MINI PANEL
- Dimensions
- Length Ć4.75"
- Height 2.36"
- Finish WHITE
- Cutout Ć3.89"
- Plate LR41002 (#1), LR41006 (#3), LR41010 (#R1), LR41011 (#4)

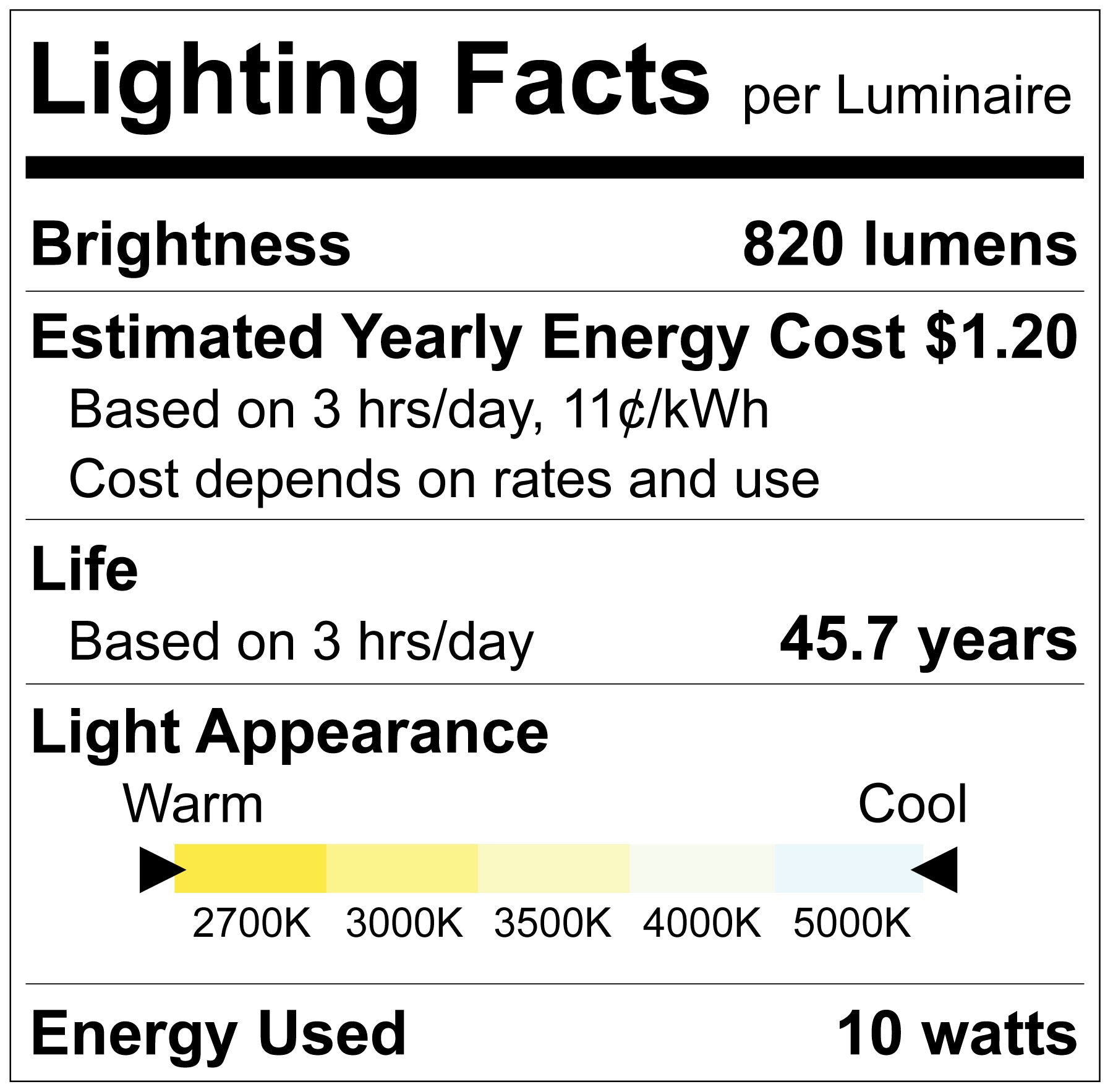

PHOTOMETRIC
- Color (Temp) CCT SELECTABLE
- Color (CCT) 2700K/3000K/3500K/4000K/5000K
- Lumen 820
- Beam Angle 110Āŗ
- CRI 90
ELECTRICAL
- Power (Wattage) 10
- Input Volts 120V
- Rated Lifetime 50000
- Yearly Cost $1.20
- Dimmable TRIAC
- Power Factor 0.9
- Frequency 50/60Hz
- Lumen Efficacy 82
- Operating Temp:
- Min -4Āŗ
- Max 104Āŗ
PACKAGING
- UPC Barcode 732388936663
- Master BarCode 10732388936660
- Master Carton Dimensions:
- Length 12"
- Width 8.58"
- Height 5.82"
- Case Size 6
FEATURES
CERTIFICATIONS
LUXIFLOW
Lighting Layout Software
Our dynamic software tool allows you to estimate the optimum illuminance level, number of luminairies, power density, and luminaire/pole spacing necessary for interior and exterior spaces. Itās designed to help industry experts formulate and display predicted lighting performance.
LIFERITE WARRANTY
When you buy from us,
youāre covered by us.
LifeRite is our own, first-party warranty,
available in 2-, 3-, and 5āyear terms,
depending on the exact product.
