LR42345

GRID SMART PRO 96" 15/16" - 5CCT SELECTABLE

LEDGS/SM/96/UNV/D/5CCT/1516

LR42345

GRID SMART PRO 96" 15/16" - 5CCT SELECTABLE

$0.00
/

LEDGS/SM/96/UNV/D/5CCT/1516

  • CCT 3000K/3500K/4000K/5000K/6500K
  • Lumen 7800
  • WATT 60
  • Size96"

SPECIFICATIONS

  • Item numberLR42345
  • Item description

    LEDGS/SM/96/UNV/D/5CCT/1516

  • Size96"
  • Shape GRID SMART

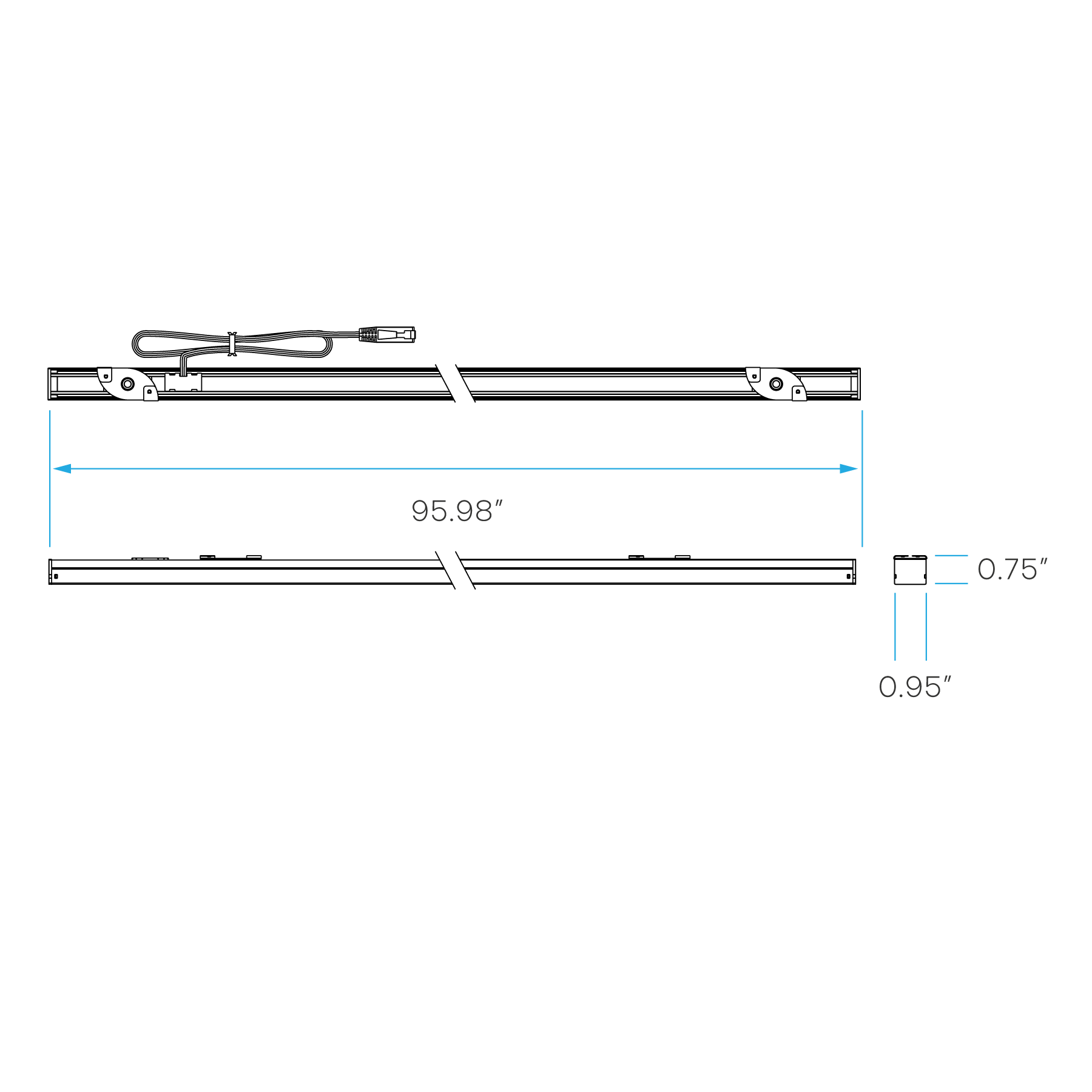

  • Dimensions
    • Length 95.98"
    • Width 0.95"
    • Depth 0.75"
  • Finish FROSTED WHITE
  • MOL 95.98"

PHOTOMETRIC

  • Color (Temp) CCT SELECTABLE
  • Color (CCT) 3000K/3500K/4000K/5000K/6500K
  • Lumen 7800
  • Beam Angle 120Āŗ
  • CRI 80

ELECTRICAL

  • Power (Wattage) 60
  • Input Volts 100-277V
  • Rated Lifetime 50000
  • Yearly Cost $7.22
  • Dimmable 0-10V
  • Power Factor 0.9
  • Input Current 0.67A
  • Frequency 50/60Hz
  • Lumen Efficacy 130
  • Operating Temp:
    • Min -4Āŗ
    • Max 113Āŗ

PACKAGING

  • UPC Barcode 732388963966
  • Master BarCode 10732388963963
  • Master Carton Dimensions:
    • Length 97.5"
    • Width 8.7"
    • Height 12.1"
    • Weight 44.6lb
  • Case Size 32

FEATURES

    80 LIFE HR 50000

CERTIFICATIONS
